Make : Yaskawa
Cat : CIMR-AD4A0165AMA
Rating : A1000 VVVF Drive 75 kW (HD) / 90 kW (ND)
Operating Voltage : 400V AC
Product Description

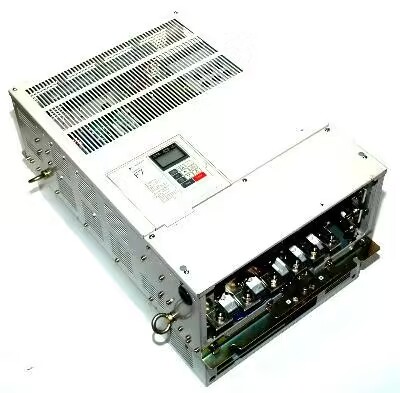

Yaskawa Ac Drive
Up to 30% smaller than the competition
Current vector control, open loop
RoHS compliance
On-line tuning
Induction motor (IM) or permanent magnet motor (PM) operation
Function Block Diagram (FBD) programming via DriveWorksEZ™
Side-by-side installation due to patented hybrid heatsink
Removable terminal block with parameter backup function
One-touch copy function with verify
Super-fast 2 ms scan cycle with dual CPU
EN954-1 Safety Cat. 3, Stop Cat. 0
Increased vibration resistance, from 20 Hz to 50 Hz (0.65G)
1 in 10,000 failure rate
Swing PWM function to decrease noise at low carrier frequencies
Pre-maintenance function
Modbus communication
Cooling fan replacement without tools
MTBF: 28 years
Short Circuit Current Rating (SCCR): 30kA rms symmetrical
Common programming with all other Yaskawa drives
DriveWizard software available at no extra cost
| Usage Industrial |
| Color White |
| Product Type AC Drive |
| Material Plastic |
| Power 10-100 Watt (w) |
| Temperature -10 to 40 Celsius (oC) |
| Voltage 220-480 Volt (v) |
