22C-D088A103

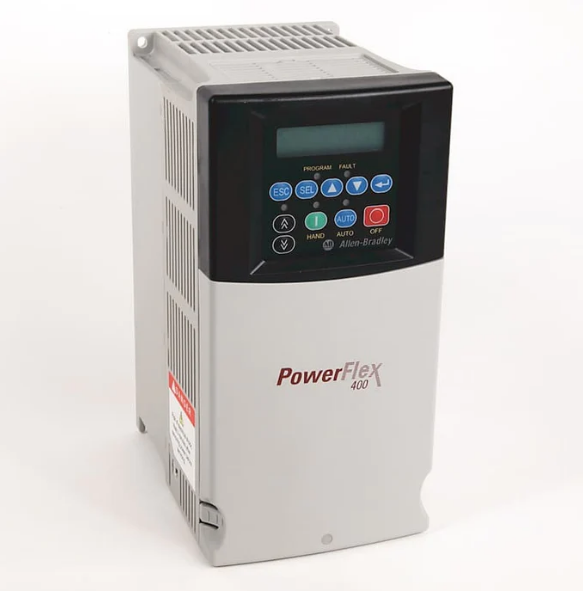

22CD088A103 Allen-Bradley PowerFlex 400 22C-D088A103 45 kW 480VAC 3PH 88A (60 HP) AC Drives
| Mfr. Part Number: |
22C-D088A103 |
| Manufacturer: | Allen-Bradley / Rockwell Automation |
| Description: | Allen-Bradley 22C-D088A103 PowerFlex 400 Fan & Pump Drive 480VAC 3PH 88A 60HP |
| Full Description: | Allen-Bradley 22C-D088A103 PowerFlex 400 Fan & Pump Drive, 480V AC, 3-Phase, 88 Amps, 45 kW, 60 HP, Frame Size E, IP30 (NEMA 1 / UL Type 1), Fixed Keypad, RS485 without Brake IGBT |
| Input Phase: | 3-Phase |
| Optional communication protocols: | BacNet; LonWorks; ProfiBus; Ethernet; DeviceNet; ControlNet |
| Built-in communication port: | RS485 |
| Enclosure Rating: | IP20 / NEMA UL Open Type |
| Installation: | Panel Mount |
| Embedded I/O: | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) Open Output; Two (2) Form C Contacts Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: Two (2) Analog Input 0-10VDC; 0- 20mA |
| Control Method: | V/Hz, Slip compensation, Process PID |
| Applicable Motor Rating: | 45kW (60.0 HP) |
| Output Current: | 88 A |
| Output Voltage: | 0-460VAC |
| Input Current: | 90 A |
| Manufacturer: | Rockwell Automation / Allen-Bradley |
| Brand | Allen-Bradley |
| Input Voltage | 342-528VAC |
| Part Number/Catalog No. | 22C-D088A103 |
| Product Line | Powerflex 400 |
| Drive Type | Fan & Pump |
| Horsepower | 60 |
| Phase | Three-Phase |
| Enclosure | Panel Mount – IP30, NEMA/UL Type 5 |
| Amperage | 88 Amps |
