ACS880-04 AC Inverters

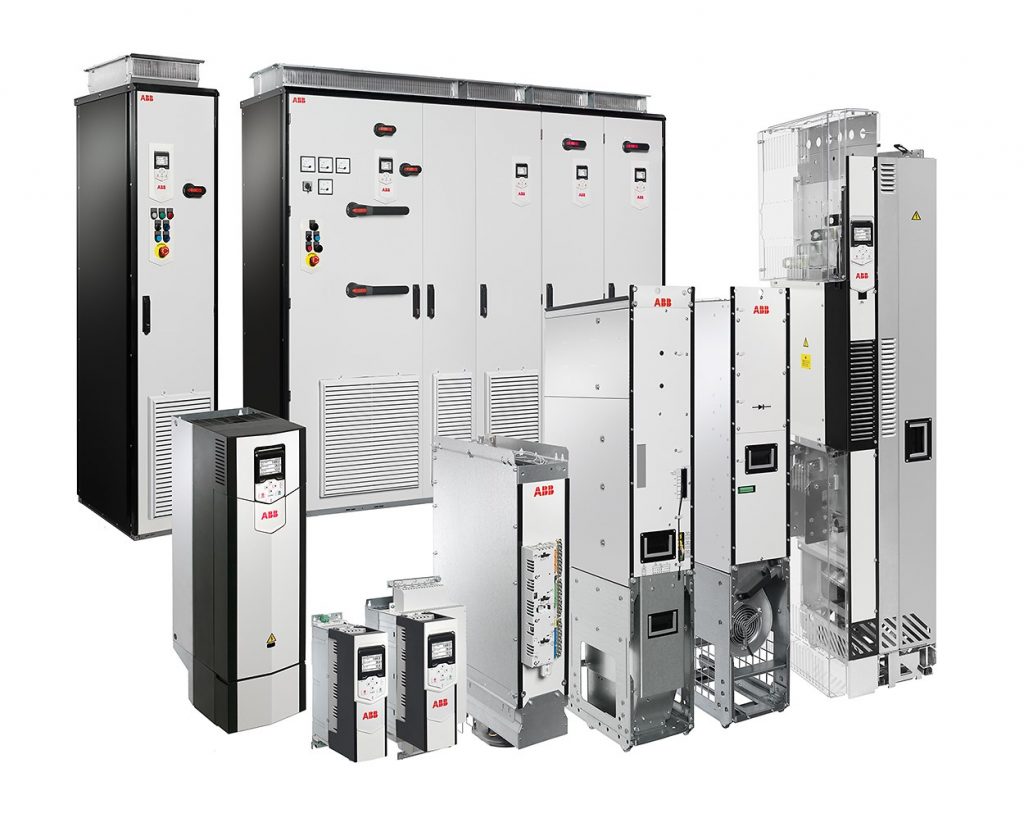

ABB industrial drives
ACS880, drive modules   (0.55 to 3200 kW)

Our ACS880-04 single drive modules are optimized for easy and cost efficient cabinet assembly. With a compact and robust cabinet design, they save a lot of floor space and are easy to
maintain and service. Being part of the all-compatible ACS880 industrial drives series, the single drive modules are easy to integrate into other systems and they provide great control
performance with versatile drive features. This power intensive drive module is compatible with a wide range of industries including oil and gas, mining, metals, chemicals, cement, power
plants, material handling, pulp and paper and woodworking. Applications range from cranes, extruders, conveyors, compressors to pumps and fans.

Main features
− Enclosure class IP20 as standard
− Power supply coming from the top part of the module and out from the lower part of the cabinet, enabling more optimal cabinet design
− Possibility for flat mounting enables cabinet assembly even into cabinets with limited depth
− Easy installation, commissioning and maintenance with pedestal on wheels, ramp and optional cable panel (+H381)
− Direct torque control (DTC) as standard, for high performance motor control
− Integrated safety including safe torque off (STO) as standard and the optional safety functions module (TÜV Nord certifi ed)
− Supports various motor types including synchronous reluctance motors
− Intuitive control panel with USB connection
− Removable memory unit for easy maintenance
− Drive composer PC tool for commissioning and confi guration
− Control unit with three option slots, that can be installed either inside the module or in different parts of the cabinet, supporting a wide range of fieldbuses, feedback devices and input/output options
− Coated boards as standard
− Built-in choke as standard for input harmonics reduction
− Built-in braking chopper (option)
− EMC filter option
− Power terminals are available as standard on the left side of the module. The power terminals can also be cabled on the right side of the module as option

Single drive modules, ACS880-04, frame sizes R10 (with external control unit) and R11 (with internal control unit and control panel integrated in the module), bookshelf mounting

Single drive modules, ACS880-04, flat mounting

Optional cabel panel installed inside the cabinet. ACS880-04 is pushed into the cabinet using a ramp and pedestal on wheels.
