1756A7 | 1756-A7

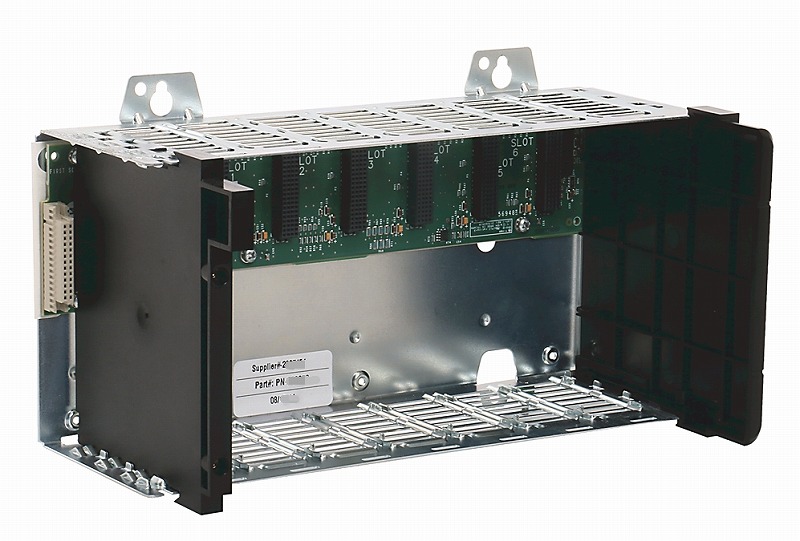

Allen-Bradley 1756-A7 Controllogix 7 Slots Chassis
| Brand | Allen-Bradley |
| Module Type | Chassis |
| Series | ControlLogix |
| Part Number/Catalog No. | 1756-A7 |
| Brand | Allen-Bradley |
| No. of slots | Seven (7) slots |
| Backplane Current, Chassis/Slot @ 1.2VDC | 1.5 A |
| Backplane Current, Chassis/Slot @ 3.3VDC | 4A/4 A |
| Backplane Current, Chassis/Slot @ 5.1VDC | 15 A/6 A |
| Backplane Current, Chassis/Slot @ 24VDC | 2.8 A/2.8 A |
| Orientation | Horizontal |
| No. of mounting tabs | Four (4) |
| Operating Temperature, Series B | 0°C to +60°C (+32°F to +140°F) |
| Operating Temperature, Series C | -25…+60 °C (-13…+140 °F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Cabinet size (HxWxD), min | 50.8 x 60.9 x 20.3 cm (20 x 24 x 8 in.) |
| Power dissipation, max | 4.5 W |
| Slots | 7 |
| Power Dissipation (Max) | 4.5 Watts |
| Dimensions | 20 x 24 x 8 inches |
| Weight | 2.4 pounds (1.1 kilograms) |
| Enclosure | Open |
| Backplane Current (5 Volts DC) | 10 Amps |
| Backplane Current (24 Volts DC) | 2.8 Amps |
