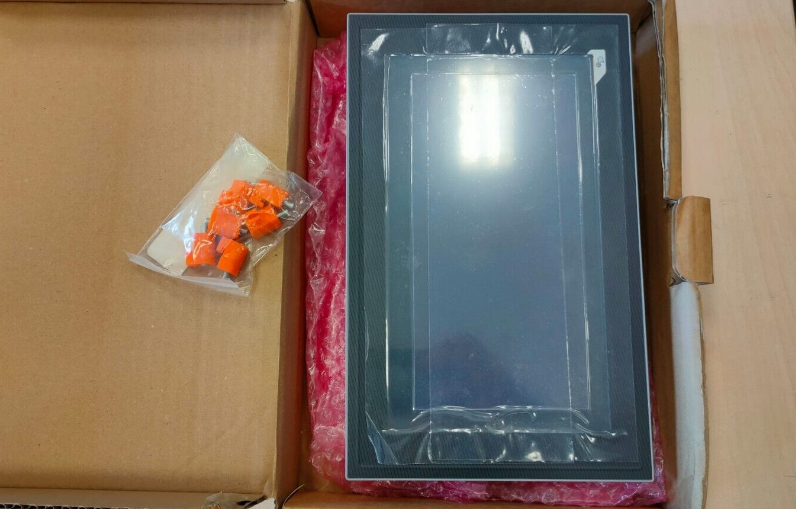

6PPT30.101G-20B
DESCRIPTION:
Power Panel T30, 10.1″, landscape format. CPU and memory: 600 MHz (ARM Cortex-A8), 512 MB onboard flash drive. Display and touch screen: 10.1″, 1024 x 600 (WSVGA) resolution, analog resistive touch screen, landscape format, anthracite gray pinstripe. Interfaces: 2x Ethernet 10/100 Mbit/s (integrated switch), 2x USB 2.0. Client software: Integrated service page, VNC client, embedded web browser.
General information
| LEDs | Ethernet |
| B&R ID code | 0xE596 |
| Cooling | Passive |
| Power button | No |
| Reset button | No |
| Buzzer | Yes |
| Support | |
| mapp View | Yes |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| UL | cULus E115267 Industrial control equipment |
| DNV | Temperature: B(0 to 55°C) Humidity: B(up to 100%) Vibration: A(0.7 g) EMC: B(bridge and open deck) |
| LR | ENV1 |
| KR | Yes |
| ABS | Yes |
| BV | EC31B Temperature: 5 – 55°C Vibration: 0.7 g EMC: Bridge and open deck |
| EAC | Yes |
Controller
| Operating system | PPT30 system |
| Real-time clock | No |
| Processor | |
| Type | ARM Cortex-A8 |
| Clock frequency | 1 GHz |
| L1 cache | 64 kB |
| L2 cache | 256 kB |
| Flash | 512 MB |
| Mode/Node switches | No |
| DRAM | 256 MB |
Display
| Type | TFT color |
| Diagonal | 10.1″ |
| Colors | 16.7 million (RGB, 8 bits per channel) |
| Resolution | WSVGA, 1024 x 600 pixels |
| Contrast | Typ. 500:1 |
| Viewing angles | |
| Horizontal | Direction L / Direction R = Typ. 80° |
| Vertical | Direction U / Direction D = Typ. 80° |
| Backlight | |
| Type | LED |
| Brightness | Typ. 500 cd/m² |
| Half-brightness time | 50,000 h |
| Touch screen | |
| Type | AMT |
| Technology | Analog resistive |
| Controller | B&R, 12-bit |
| Transmittance | 80% ±3% |
| Screen rotation | Yes |
Interfaces
| Interface | |
| Connection | ETH1 (IF1) and ETH2 (IF2) |
| Type | Ethernet |
| Variant | Shielded RJ45 (integrated 2-port switch) |
| Line length | Max. 100 m between 2 stations (segment length) |
| Max. transfer rate | 10/100 Mbit/s |
| Transfer | |
| Physical layer | 10BASE-T / 100BASE-TX |
| Half-duplex | Yes |
| Full-duplex | Yes |
| Autonegotiation | Yes |
| Auto-MDI/MDIX | Yes |
| Interface IF3 | |
| Type | USB 2.0 |
| Variant | Type A |
| Current-carrying capacity | 0.5 A |
| Interface IF4 | |
| Type | USB 2.0 |
| Variant | Type A |
| Current-carrying capacity | 0.2 A |
Electrical properties
| Nominal voltage | 24 VDC |
| Max. current at nominal voltage | 429 mA |
| Max. power consumption | 10.3 W |
| Fuse | 4 A slow-blow, internal |
| Voltage range | 8 to 32 VDC |
| Reverse polarity protection | Yes |
| Electrical isolation | Ethernet (ETH1/IF1 and ETH2/IF2) to other interfaces, power supply and ground |
Operating conditions
| Permissible mounting orientations | |
| Standard mounting orientation | Vertical |
| Inclination | ±25° |
| Rotation | In 90° increments (portrait/landscape) |
| Installation elevation above sea level | |
| 0 to 2000 m | No limitation |
| >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | Front: IP65, Back: IP20 |
| Degree of protection per UL 50 | Front: Type 4X indoor use only |
Ambient conditions
| Temperature | |
| Operation | -20 to 60°C |
| Storage | -20 to 70°C |
| Transport | -20 to 70°C |
| Relative humidity | See temperature/humidity diagram. |
Mechanical properties
| Front | |
| Design | Anthracite gray pinstripe |
| Dimensions | |
| Width | 276 mm |
| Height | 172 mm |
| Depth | 47.8 mm |
| Weight | 0.9 kg |
