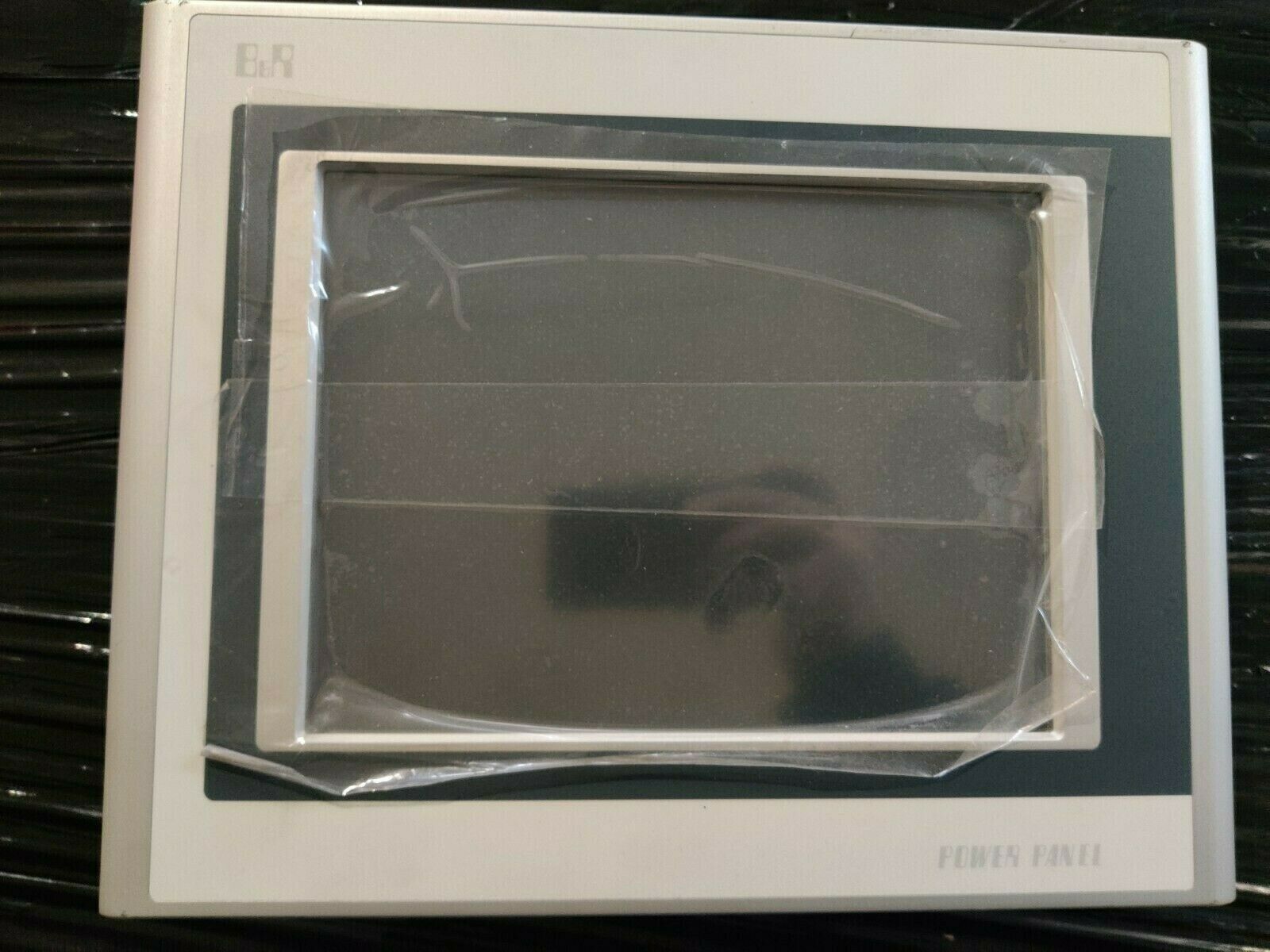

4PP420.1505-B5
Description:
Power Panel PP420, 15″ XGA color TFT display with touch screen (resistive), 2 aPCI slots, 128 MB SDRAM, 512 kB SRAM CompactFlash slot (type I), ETH 10/100, RS232, 2x USB, IP65 protection (front), 24 VDC (order screw clamp terminal block 0TB103.9 or cage clamp terminal block 0TB103.91 separately).
| LEDs | Power/User, CF |
| B&R ID code | 0x23C0 |
| Battery | |
| Type | Renata 950 mAh |
| Service life | 3 years |
| Removable | Yes, accessible from the outside |
| Backup capacitor | |
| Buffer time | 10 min |
| Variant | Lithium ion |
| Power button | Yes |
| Reset button | Yes |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| UL | cULus E115267 |
| Industrial control equipment | |
| KC | Yes |
| Controller | |
| Bootloader | Automation Runtime |
| Processor | |
| Type | Geode LX800 |
| Clock frequency | 500 MHz |
| L1 cache | 128 kB (64 kB I-cache / 64 kB D-cache) |
| L2 cache | 128 kB |
| Expanded command set | MMX technology, 3D Now |
| Floating point unit (FPU) | Yes |
| Flash | 2 MB (for firmware) |
| Cooling | Passive via heat sink |
| Mode/Node switches | 2, 16 positions each |
| Watchdog | MTCX |
| Real-time clock | |
| Accuracy | At 25°C: Typ. 30 ppm (2.5 seconds) per day |
| Battery-backed | Yes |
| Power failure logic | |
| Controller | MTCX |
| Buffer time | 10 ms |
| Graphics | |
| Controller | Geode LX800 |
| Memory | 8 MB shared memory (reserved by main memory) |
| SRAM | |
| Size | 512 kB |
| Battery-backed | Yes |
| Display | |
| Type | TFT color |
| Diagonal | 15″ (381 mm) |
| Colors | 16.2 million |
| Resolution | XGA, 1024 x 768 pixels |
| Contrast | 1000:1 |
| Viewing angles | |
| Horizontal | Direction R / Direction L =85° |
| Vertical | Direction U / Direction D = 85° |
| Backlight | |
| Type | LED |
| Brightness | 350 cd/m² |
| Half-brightness time | 70,000 h |
| Filter glass | |
| Transmittance | – |
| Anti-glare coating | – |
| Touch screen | |
| Type | AMT |
| Technology | Analog, resistive |
| Controller | Elo, serial, 12-bit |
| Transmittance | Up to 80% ±5% |
| Interfaces | |
| COM1 | |
| Type | RS232, modem supported, not galvanically isolated |
| Variant | 9-pin male DSUB connector |
| UART | 16C550-compatible, 16-byte FIFO buffer |
| Max. baud rate | 115 kbit/s |
| CompactFlash slot 1 | |
| Type | Type I |
| USB | |
| Quantity | 2 |
| Type | USB 1.1, USB 2.0 |
| Variant | Type A |
| Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) |
| Current-carrying capacity | Max. 500 mA per connection |
| Ethernet | |
| Quantity | 1 |
| Controller | Intel 82551ER |
| Transfer rate | 10/100 Mbit/s |
| Max. baud rate | 100 Mbit/s |
| Keys | |
| Function keys | No |
| Soft keys | No |
| System keys | No |
| Service life | – |
| LED luminous intensity | – |
| Slots | |
| aPCI slots | 2 |
| Electrical properties | |
| Nominal voltage | 18 to 30 VDC |
| Nominal current | 1.25 A |
| Bleeder resistance | 0 Ω |
| Inrush current | Max. 2 A |
| Power consumption | Typ. 30 W |
| Galvanic isolation | Yes |
| Operating conditions | |
| Degree of protection per EN 60529 | Back: IP20 (only with connected CF card, connected aPCI module or optional aPCI cover) |
| Front: IP65 / NEMA 250 type 4X indoor, protected against dust and hose-directed water | |
| Ambient conditions | |
| Temperature | |
| Operation | 0 to 50℃ |
| Storage | -20 to 60℃ |
| Transport | -20 to 60℃ |
| Vibration | |
| Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g |
| Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g |
| Storage | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Transport | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Shock | |
| Operation | 15 g, 11 ms |
| Storage | 30 g, 15 ms |
| Transport | 30 g, 15 ms |
| Elevation | |
| Operation | Max. 3000 m |
| Mechanical properties | |
| Housing | |
| Material | Metal |
| Front聽 | |
| Frame | Aluminum, naturally anodized |
| Design | Gray |
| Panel overlay | |
| Material | Polyester |
| Light background color | Similar to Pantone 427CV |
| Dark border color around display | Similar to Pantone 432CV |
| Gasket | Flat gasket around display front |
| Dimensions | |
| Width | 435 mm |
| Height | 330 mm |
| Depth | 109 mm |
| Weight | 6800 g |
