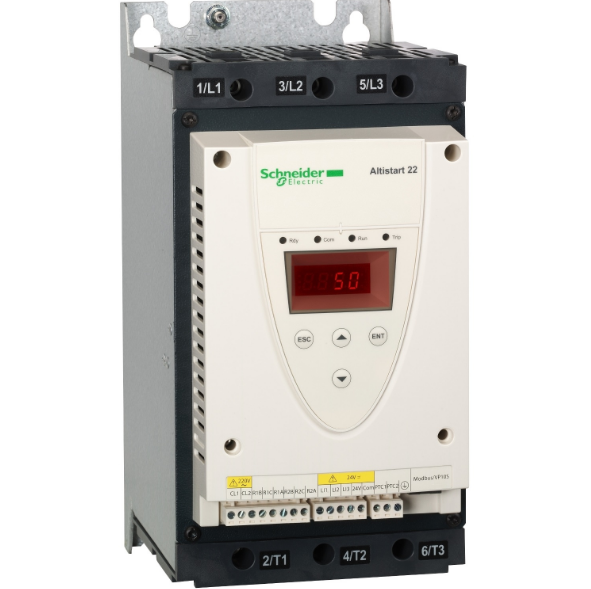

soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 160 to 355kW
ATS22C59Q
| Range of product | Altistart 22 |
| product or component type | Soft starter |
| product destination | Asynchronous motors |
| Product specific application | Pumps and fans |
| Component name | ATS22 |
| Network number of phases | 3 phases |
| [Us] rated supply voltage | 230…440 V – 15…10 % |
| Motor power kW | 160 kW 230 V |
| 315 kW 400 V | |
| 355 kW 440 V | |
| Factory setting current | 560 A |
| Power dissipation in W | 251 W for standard applications |
| Utilisation category | AC-53A |
| Type of start | Start with torque control (current limited to 3.5 In) |
| IcL starter rating | 590 A for connection in the motor supply line for standard applications |
| IP degree of protection | IP00 |
| Assembly style | With heat sink |
| Function available | Internal bypass |
| Supply voltage limits | 195…484 V |
| Supply frequency | 50…60 Hz – 10…10 % |
| Network frequency | 45…66 Hz |
| Device connection | To the motor delta terminals |
| In the motor supply line | |
| [Uc] control circuit voltage | 230 V – 15…10 % 50/60 Hz |
| Control circuit consumption | 20 W |
| Discrete output number | 2 |
| Discrete output type | Relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O |
| Relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O | |
| Minimum switching current | 100 mA at 12 V DC (relay outputs) |
| Maximum switching current | 5 A 250 V AC resistive 1 relay outputs |
| 5 A 30 V DC resistive 1 relay outputs | |
| 2 A 250 V AC inductive 0.4 20 ms relay outputs | |
| 2 A 30 V DC inductive 7 ms relay outputs | |
| Discrete input number | 3 |
| Discrete input type | (LI1, LI2, LI3) logic, 5 mA 4.3 kOhm |
| Discrete input voltage | 24 V <= 30 V |
| Discrete input logic | Positive logic LI1, LI2, LI3 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA |
| Output current | 0.4…1 Icl adjustable |
| PTC probe input | 750 Ohm |
| Communication port protocol | Modbus |
| Connector type | 1 RJ45 |
| Communication data link | Serial |
| Physical interface | RS485 multidrop |
| Transmission rate | 4800, 9600 or 19200 bps |
| Installed device | 31 |
| Protection type | Phase failure: line |
| Thermal protection: motor | |
| Thermal protection: starter | |
| marking | CE |
| Type of cooling | Forced convection |
| Operating position | Vertical +/- 10 degree |
| Height | 455 mm |
| Width | 304 mm |
| Depth | 339.7 mm |
| net weight | 50 kg |
| Motor power range AC-3 | 110…220 kW at 200…240 V 3 phases |
| 250…500 kW at 380…440 V 3 phases | |
| Motor starter type | Soft starter |
| Electromagnetic compatibility | Conducted and radiated emissions level A conforming to IEC 60947-4-2 |
| Damped oscillating waves level 3 conforming to IEC 61000-4-12 | |
| Electrostatic discharge level 3 conforming to IEC 61000-4-2 | |
| Immunity to electrical transients level 4 conforming to IEC 61000-4-4 | |
| Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 | |
| Voltage/current impulse level 3 conforming to IEC 61000-4-5 | |
| Standards | EN/IEC 60947-4-2 |
| Product certifications | UL |
| CCC | |
| C-Tick | |
| CSA | |
| GOST | |
| Vibration resistance | 1 gn (f= 13…200 Hz) conforming to EN/IEC 60068-2-6 |
| 1.5 mm (f= 2…13 Hz) conforming to EN/IEC 60068-2-6 | |
| Shock resistance | 15 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| noise level | 56 dB |
| Pollution degree | Level 2 conforming to IEC 60664-1 |
| Relative humidity | 0…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 |
| Ambient air temperature for operation | -10…40 °C (without derating) |
| 40…60 °C (with current derating 2.2 % per °C) | |
| ambient air temperature for storage | -25…70 °C |
| Operating altitude | <= 1000 m without derating |
| > 1000…< 2000 m with current derating of 2.2 % per additional 100 m |
