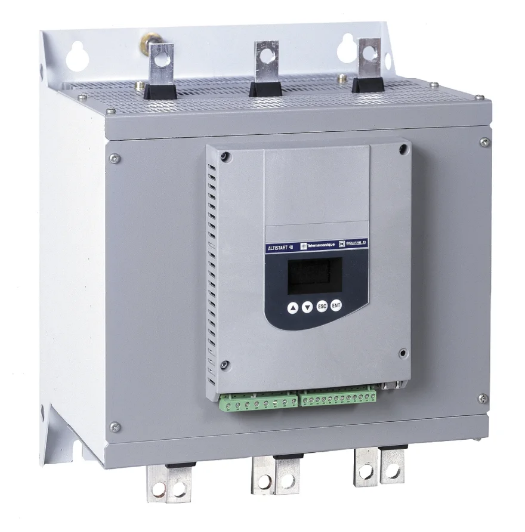

soft starter for asynchronous motor, Altistart 48, 233A, 230..415V, 55..220kW
ATS48C25Q
| Range of product | Altistart 48 |
| product or component type | Soft starter |
| product destination | Asynchronous motors |
| Product specific application | Heavy duty industry and pumps |
| Device short name | ATS48 |
| Utilisation category | AC-53A |
| Ue power supply voltage | 230…415 V – 15…10 % |
| power supply frequency | 50…60 Hz – 5…5 % |
| Motor power kW | 55 kW at 230 V connection in the motor supply line for severe applications |
| 75 kW at 230 V connection in the motor supply line for standard applications | |
| 110 kW at 230 V connection to the motor delta terminals for severe applications | |
| 110 kW at 400 V connection in the motor supply line for severe applications | |
| 132 kW at 230 V connection to the motor delta terminals for standard applications | |
| 132 kW at 400 V connection in the motor supply line for standard applications | |
| 160 kW at 400 V connection to the motor delta terminals for severe applications | |
| 220 kW at 400 V connection to the motor delta terminals for standard applications |
| Device connection | To the motor delta terminals |
| In the motor supply line | |
| Protection type | Phase failure: line |
| Thermal protection: motor | |
| Thermal protection: starter | |
| Standards | EN/IEC 60947-4-2 |
| Product certifications | C-Tick |
| CCC | |
| UL | |
| NOM 117 | |
| CSA | |
| DNV | |
| SEPRO | |
| GOST | |
| TCF | |
| marking | CE |
| Discrete input number | 5 |
| Discrete input type | PTC, 750 Ohm at 25 掳C |
| (Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm | |
| Discrete input logic | Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA |
| Minimum switching current | 10 mA at 6 V DC for relay outputs |
| Discrete output number | 2 |
| Discrete output type | (LO1) logic output 0 V common configurable |
| (LO2) logic output 0 V common configurable | |
| (R1) relay outputs fault relay NO | |
| (R2) relay outputs end of starting relay NO | |
| (R3) relay outputs motor powered NO | |
| Analogue output type | Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm |
| Communication port protocol | Modbus |
| Connector type | 1 RJ45 |
| Communication data link | Serial |
| Physical interface | RS485 multidrop |
| Transmission rate | 4800, 9600 or 19200 bps |
| Function available | External bypass (optional) |
| Operating position | Vertical +/- 10 degree |
| Height | 380 mm |
| Width | 320 mm |
| Depth | 265 mm |
| net weight | 18.2 kg |
| Electromagnetic compatibility | Conducted and radiated emissions level A conforming to IEC 60947-4-2 |
| Damped oscillating waves level 3 conforming to IEC 61000-4-12 | |
| Electrostatic discharge level 3 conforming to IEC 61000-4-2 | |
| Immunity to electrical transients level 4 conforming to IEC 61000-4-4 | |
| Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 | |
| Voltage/current impulse level 3 conforming to IEC 61000-4-5 | |
| Relative humidity | 0…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 |
| Ambient air temperature for operation | 40…60 °C (with current derating of 2 % per °C) |
| -10…40 °C (without derating) | |
| ambient air temperature for storage | -25…70 °C |
| Operating altitude | <= 1000 m without derating |
| > 1000…2000 m with current derating of 2.2 % per additional 100 m |
