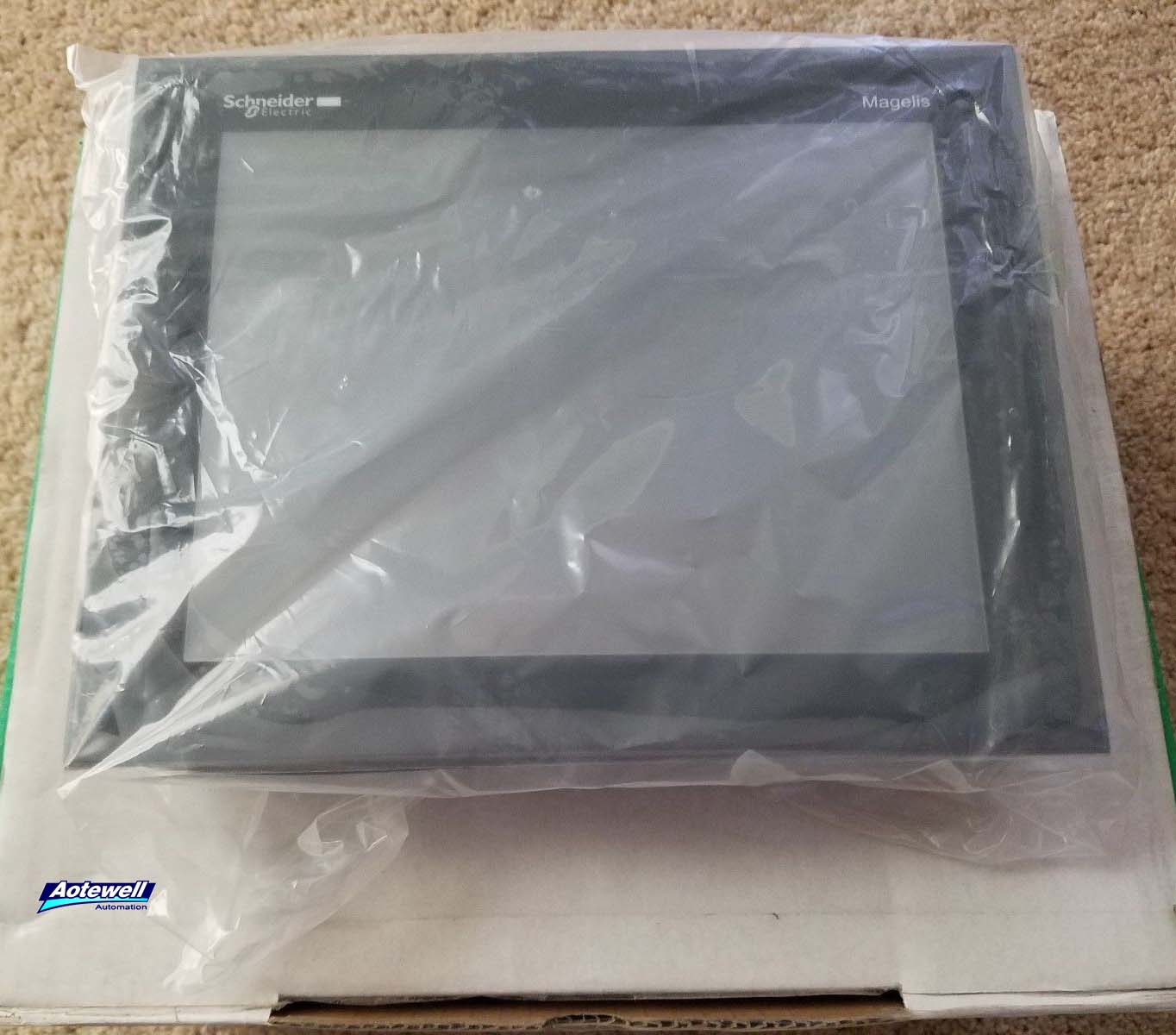

XBTGT4330
advanced touchscreen panel – 640 x 480 pixels VGA – 7.5″ – TFT LCD – 24 V DC
| Main | |
| Range of Product | Harmony XBTGT |
| Product or Component Type | Advanced touchscreen panel |
| display type | Backlit colour TFT LCD |
| Display colour | 65536 colours |
| Display Resolution | 640 x 480 pixels VGA |
| display size | 7.5 inch |
| Software Type | Configuration software |
| Software Designation | Vijeo Designer |
| Operating System | Harmony |
| Processor name | CPU RISC |
| Processor frequency | 266 MHz |
| Memory description | 512 KB SRAM back up of data lithium battery |
| 32 MB flash EPROM application memory | |
| Integrated connection type | RJ45 COM2 serial link RS485 <= 187.5 kbit/s Siemens MPI (187.5 kbits/s) |
| male SUB-D 9 COM1 serial link RS232C/RS422/RS485 <= 115.2 kbits/s | |
| removable screw terminal block power supply | |
| RJ45 Ethernet TCP/IP | |
| 3 removable screw terminal block digital output | |
| removable screw terminal block audio output | |
| removable screw terminal block digital input | |
| USB type A master port (V1.1) | |
| Resistance to electrostatic discharge | 6 kV IEC 61000-4-2 level 3 |
| Cut-out dimensions | 204.5 (+ 1/- 0) x 159.5 (+ 1/- 0) mm |
| Complementary | |
| Touch sensitive zone | 1024 x 1024 |
| Touch panel | Analogue |
| Backlight lifespan | 54000 hours |
| Brightness | 8 levels via touch panel |
| Contrast | 8 levels via touch panel |
| character font | Japanese (ANK, Kanji) |
| Korean | |
| Chinese (simplified Chinese) | |
| ASCII (European characters) | |
| Taiwanese (traditional Chinese) | |
| [Us] rated supply voltage | 24 V DC |
| supply | External source |
| Supply voltage limits | 19.2…28.8 V |
| Inrush current | 30 A |
| Power Consumption in W | 28 W |
| Local signalling | For normal operation or backlighting faulty 1 LED (green or orange) |
| Number of pages | Limited by internal memory capacity |
| Downloadable protocols | Telemecanique Modicon FIPWAY |
| Telemecanique Modicon Modbus Plus | |
| Telemecanique Modicon Modbus TCP | |
| Telemecanique Modicon Modbus | |
| Mitsubishi Melsec third party protocols | |
| Omron Sysmac third party protocols | |
| Rockwell Automation Allen-Bradley third party protocols | |
| Siemens Simatic third party protocols | |
| Telemecanique Modicon Uni-TE | |
| Realtime clock | Built-in |
| Data storage equipment | 1 Compact Flash card >= 1 GB |
| Use of slot | For 1 fieldbus communication card (Device Net, Profibus DP) |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Product mounting | Flush mounting |
| Fixing Mode | By 4 screw clamps |
| By 4 spring clips | |
| Front material | Aluminium alloy |
| Enclosure Material | PPT |
| Marking | CE |
| Width | 8.46 in (215 mm) |
| Height | 6.69 in (170 mm) |
| Depth | 2.36 in (60 mm) |
| Net Weight | 3.97 lb(US) (1.8 kg) |
| Environment | |
| Immunity to microbreaks | 10 ms |
| Standards | FCC Class A |
| UL 508 | |
| UL 1604 | |
| IEC 61000-6-2 | |
| EN 61131-2 | |
| CSA C22.2 No 14 | |
| Product Certifications | UL Class 1 Division 2 T5 |
| ATEX zone 2/22 | |
| CSA Class 1 Division 2 T4A | |
| cULus | |
| CSA Class 1 Division 2 T5 | |
| C-tick | |
| UL Class 1 Division 2 T4A | |
| Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
| Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
| Relative humidity | 10…90 % without condensation |
| Operating altitude | < 6561.68 ft (2000 m) |
| IP degree of protection | IP20 IEC 60529 rear panel) |
| IP65 IEC 60529 front panel) | |
| NEMA degree of protection | NEMA 4X front panel (indoor use) |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Vibration resistance | 1 gn 9…150 Hz)IEC 60068-2-6 |
| 3.5 mm 5…9 Hz)IEC 60068-2-6 | |
| Resistance to electromagnetic fields | 9.14 V/m (10 V/m) IEC 61000-4-3 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 level 3 |
| Ordering and shipping details | |
| Category | 22569-MAGELIS XBT-GT (AND XBT-G) |
| Discount Schedule | MC2 |
| GTIN | 3.59586E+12 |
| Returnability | No |
| Country of origin | CN |
