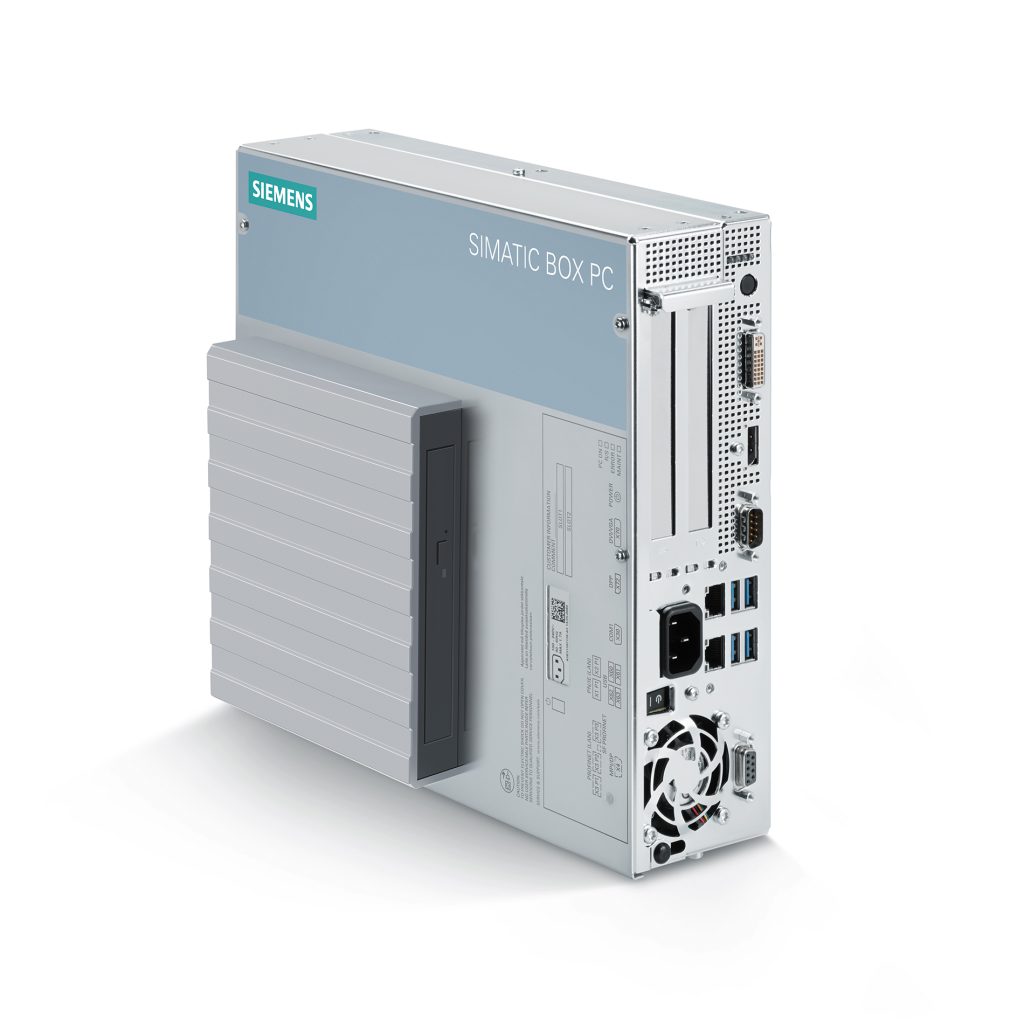

SIMATIC IPC627D

The high-end IPC – with maximum performance, functionality and expandability

The compact SIMATIC IPC627D is one of the first Industry PCs on the market with the latest 4th generation Intel Core processors (Xeon, i3 – also known under “Haswell”). It distinguishes itself by its high performance in tough industrial environments. With its powerful processors, it is particularly suitable for the fast processing of large amounts of data and demanding visualization solutions at ambient temperatures up to 55 °C. For especially compact solutions (e.g., in the control cabinet), space-saving portrait mounting is available for the IPC627D. A solid-state drive is available for the setup of low-maintenance, highly available, hard-drive-less systems. With up to 16 GB of memory, nothing stands in the way of data-intensive applications. Compatibility with regard to installation, interfaces and software facilitates the migration of existing SIMATIC Box PC 627C applications.

Outstanding features:

Maximum system performance for demanding instrumentation, control and visualization tasks

• Intel processors: Xeon, Core i3 or Celeron; with 4 or 2 cores, with Turbo-Boost technology (Xeon) and Hyper-Threading (Xeon, i3)
• Intel DH82C226 Platform Controller Hub, previously chipset)
• DDR3 1600 memory technology up to 16-GB RAM
• Intel HD 4600 Graphics for high graphic performance
• PCI-Express-x16 slot for x16 graphic card support
• SATA hard disks with up to 500-GB capacity and NCQ technology (Native Command Queuing) for large data volumes

Very compact for space-saving, flexible installation

• Compact housing design (approx. 6 liter volume), in new design with blue chromated surface
• Flexible installation possibilities in a wide range of positions utilizing mounting brackets or portrait mounting kits (accessory)
• Free expansion slots: 2x PCI or 2x PCIe or 1x PCIe and 1x PCI
• 3x PROFINET interfaces onboard (optional, IRT-capable, 3 port, switching-capable, CP1616-compatible)
• 1x PROFIBUS interface onboard (optional, CP5622-compatible)
• RAID1 functionality onboard in the Platform Controller Hub (no PC slot required)
• 2x Gigabit Ethernet (IE/PN, RJ45) connections (teaming ability)
• 4x USB 3.0 (SuperSpeed)
• DisplayPort and DVI interface (for VGA or DVI monitors)

Highly rugged for direct installation in the machine

• Maximum processor performance at ambient temperatures up to 55 °C
• High shock/vibration resistance in all installation positions and orientations
• High EMC for safe operation
• SATA solid-state drive (SSD) with 240 GB (MLC) for high reliability and speed
• Tension relief for all conecting cables and plugs

High system availability; fast commissioning, maintenance and service

• High data integrity through mirrored drive system (RAID1, optional) or Solid-State Drive (SSD, optional)
• ECC memory (optional, for 1 bit error correction)
• 2 MB Battery-backed SRAM, of which 128 KB can be used as storage for non-volatile WinAC RTX data
• AMT (Intel Active Management Technology) functionality for remote access to the IPC (remote maintenance)
• CMOS backup battery accessible from outside, replacement during operation. The status can be polled via software
• 4 Indication LEDs (1x power, 3x user, e.g. WinAC)
• Operating system preinstalled and activated (saves the otherwise necessary product activation via Internet or phone)
• In the case of a system failure, quick and easy restoring of the IPC hard drive contents to the factory default state by means of the supplied recovery and restore DVD
• Worldwide service and support

Minimization of costs through high investment protection

• Platform with long-term stability featuring embedded Intel components
• Availability of 5 to 6 years; thereafter guaranteed spare parts availability of another 5 years
• Member of the scalable Box PC family with identical performance features and footprint
• System-tested with SIMATIC components
• Certifications for worldwide marketing (e.g. cULus)
• Installation compatibility across device generations; software compatibility with the preceding model

Fields of application

The SIMATIC IPC627D offers machine, plant and control cabinet builders an extremely powerful, compact PC platform for use near machines or in industrial environments:

• Instrumentation and control of process and machine data (e.g., automatic washing machines, robot control)
• Operating/visualization tasks with detached display/monitor solution (e.g., information terminals, large-screen displays in automotive manufacturing)
• Data acquisition and data processing (e.g., operating data acquisition, distributed process control)
• Motion control

The SIMATIC IPC627D possesses the CE mark for the use in industrial, residential and commercial areas – and therefore can also be employed for building automation or in public facilities.

Due to its low installation depth of 80 mm (100 mm with DVD drive) and forced ventilation, it can also be integrated in confined spaces.

The SIMATIC IPC627D can also be ordered together with WinAC RTX, WinCC flexible or WinCC as a SIMATIC HMI package at a discounted price.

Construction

Basic Hardware:

• Rugged metal housing, chromated, resistant to shock and vibration, with high EMC.
• PC card retainers for the safe operation in environments subject to shock and vibration
• Vibration and shock-absorbing internal hard drive support
• Intel HD onboard graphics, 512 MB (Xeon and i3: HD4600),
  DVI-I: 640×480 to 1920×120 /60 Hz /24-bit color quality,
  DisplayPort: max. 3840×2160 /130 Hz /30-bit color quality
• Interfaces (accessible from one side):
  • 2x Gigabit Ethernet interfaces (RJ45)
  • DisplayPort, DVI-I graphic interface
  • 4 x USB 3.0
  • 1 x serial (COM1)
• 4 Indicator LEDs (1x power, 3x user, e.g. WinAC)

Configuration options:

• Processor:
  • Intel Xeon E3-1268L v3 (4C/8T, 2.3(3.3)GHz, 8 MB Cache, VT-d, AMT)
  • Intel Core i3-4330TE (2C/4T, 2.4GHz, 4MB Cache, VT-x)
  • Intel Celeron G1820TE (2C/2T, 2.2GHz, 2MB Cache)
• Main memory:
  • 2 GB to 16 GB, DDR3 1600
  • ECC memory 8 GB/16 GB, DDR3 1600
• Fieldbus:
  • PROFINET onboard, IRT-capable, switching-capable, 3x RJ45, CP1616-compatible,
  PROFINET models come with 2 MB battery-backed onboard SRAM
  • PROFIBUS/MPI onboard, CP5622-compatible,
  PROFIBUS models come with 2 MB battery-backed onboard SRAM
• Drives:
  • SATA hard drives: 250/500 GB, 3.5″; RAID1 2x 250 GB, 2.5″
  • Solid-State Drive (SSD) SATA 240 GB
  • Optical drive SATA DVD+/-RW/-RAM
• Free slots for expansions:
  • 2x PCI (185/185 mm) or
  • 2x PCIe x16, x4 (185/185 mm) or
  • 1x PCIe x16 and 1 x PCI (185/185 mm)
• Power supply:
  • 100-240V AC (wide range), 50/60 Hz
  • 24 V DC industrial power supply
• Preinstalled and activated operating systems:
  • Windows 7 Ultimate SP1 32 Bit, Multi-Language
  • Windows 7 Ultimate SP1 64 Bit, Multi-Language
• SIMATIC PC DiagMonitor Software
• SIMATIC PC Image&Partition Creator Software
• TPM-Module – onboard security hardware (Trusted Platform Module)
  TPM is a special chip on the motherboard that radically enhances the security functions of a computer: protection against software manipulation or unauthorized third parties.
