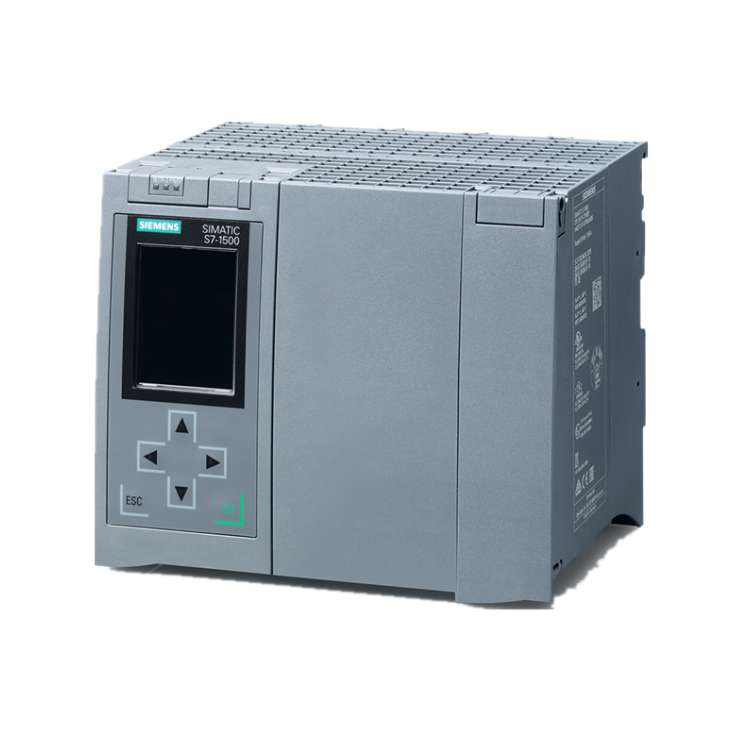

6ES7517-3AP00-0AB0
SIMATIC S7-1500, CPU 1517-3 PN/DP, central processing unit with work memory 2 MB for program and 8 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface: PROFINET RT, 3rd interface: PROFIBUS, 2 ns bit performance, SIMATIC Memory Card required
| Product | |
| Article Number (Market Facing Number) | 6ES7517-3AP00-0AB0 |
| Product Description | SIMATIC S7-1500, CPU 1517-3 PN/DP, central processing unit with work memory 2 MB for program and 8 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface: PROFINET RT, 3rd interface: PROFIBUS, 2 ns bit performance, SIMATIC Memory Card required |
| Product family | SIMATIC S7-1500 |
| CPU 1517-3 PN/DP | |
| central processing unit | |
| Memory capacity | 2 MB for program |
| 8 MB for data | |
| Network Interface | 1st interface: PROFINET IRT with 2-port switch |
| 2nd interface: PROFINET RT | |
| 3rd interface: PROFIBUS | |
| Type of supply voltage | 24 V DC |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Current consumption (rated value) | 1.55 A |
| Inrush current, max. | 2.4 A; Rated value |
| Infeed power to the backplane bus | 12 W |
| Power consumption from the backplane bus (balanced) |
30 W |
| Reverse polarity protection | Yes |
| Warranty | 1 YEAR |
| Net Weight (kg) | 2,106 Kg |
| Packaging Dimension | 20.00cm x 22.30cm x 15.70cm |
| Country of origin | Not available |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information | |
| EAN | 4047623403890 |
| UPC | 887621837525 |
| Commodity Code | 85371091 |
| LKZ_FDB/ CatalogID | ST73 |
| Product Group | 4500 |
| Group Code | R132 |
