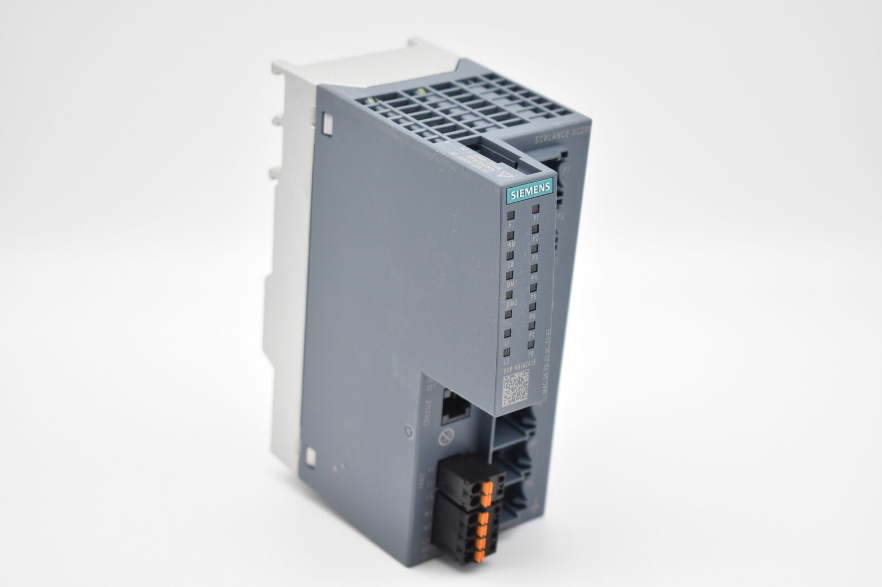

6GK5208-0BA00-2FC2

SCALANCE XC208EEC manageable Layer 2 IE switch; IEC 62443-4-2 certified; 8x 10/100 Mbit/s RJ45 ports; 1x console port; diagnostics LED; redundant power supply; with painted printed-circuit boards; NAMUR NE21-compliant; temperature range -40 °C to +70 °C; assembly: DIN rail/S7 mounting rail/wall; redundancy functions; Office; features (RSTP, VLAN,…); PROFINET IO device; Ethernet/IP-compliant; C-PLUG slot;
Product | |
Article Number (Market Facing Number) | 6GK5208-0BA00-2FC2 |
Product Description | SCALANCE XC208EEC manageable Layer 2 IE switch; IEC 62443-4-2 certified; 8x 10/100 Mbit/s RJ45 ports; 1x console port; diagnostics LED; redundant power supply; with painted printed-circuit boards; NAMUR NE21-compliant; temperature range -40 °C to +70 °C; assembly: DIN rail/S7 mounting rail/wall; redundancy functions; Office; features (RSTP, VLAN,…); PROFINET IO device; Ethernet/IP-compliant; C-PLUG slot; |
Product family | SCALANCE XC208EEC |
2 IE switch | |
Other interface | 8x 10/100 Mbit/s RJ45 ports |
1x console port; diagnostics LED | |
Type of voltage / 1 / of the supply voltage | DC |
Supply voltage / 1 / rated value | 24 V |
Power loss [W] / 1 / rated value | 4.2 W |
Consumed current / 1 / at rated supply voltage /maximum | 0.175 A |
Supply voltage / 1 / rated value | 9.6 … 31.2 V |
Consumed current / 1 / maximum | 0.35 A |
Type of electrical connection / 1 / for power supply | 4-pole terminal block |
Product component / 1 / fusing at power supply input Yes | Yes |
protection class IP | IP20 |
Temperature range | -40 °C to +70 °C |
Ethernet | Ethernet/IP-compliant |
Warranty | 1 YEAR |
Net Weight (kg) | 0.520 Kg |
Packaging Dimension | 120.00MM x 123.00MM x 125.00MM |
Country of origin | Germany |
Quantity Unit | 1 Piece |
Packaging Quantity | 1 |
Additional Product Information | |
EAN | 4047622614457 |
UPC | 804766760112 |
Commodity Code | 85176200 |
LKZ_FDB/ CatalogID | IK |
Product Group | 4D83 |
Group Code | R320 |
