6SL3220-1YD56-0CB0

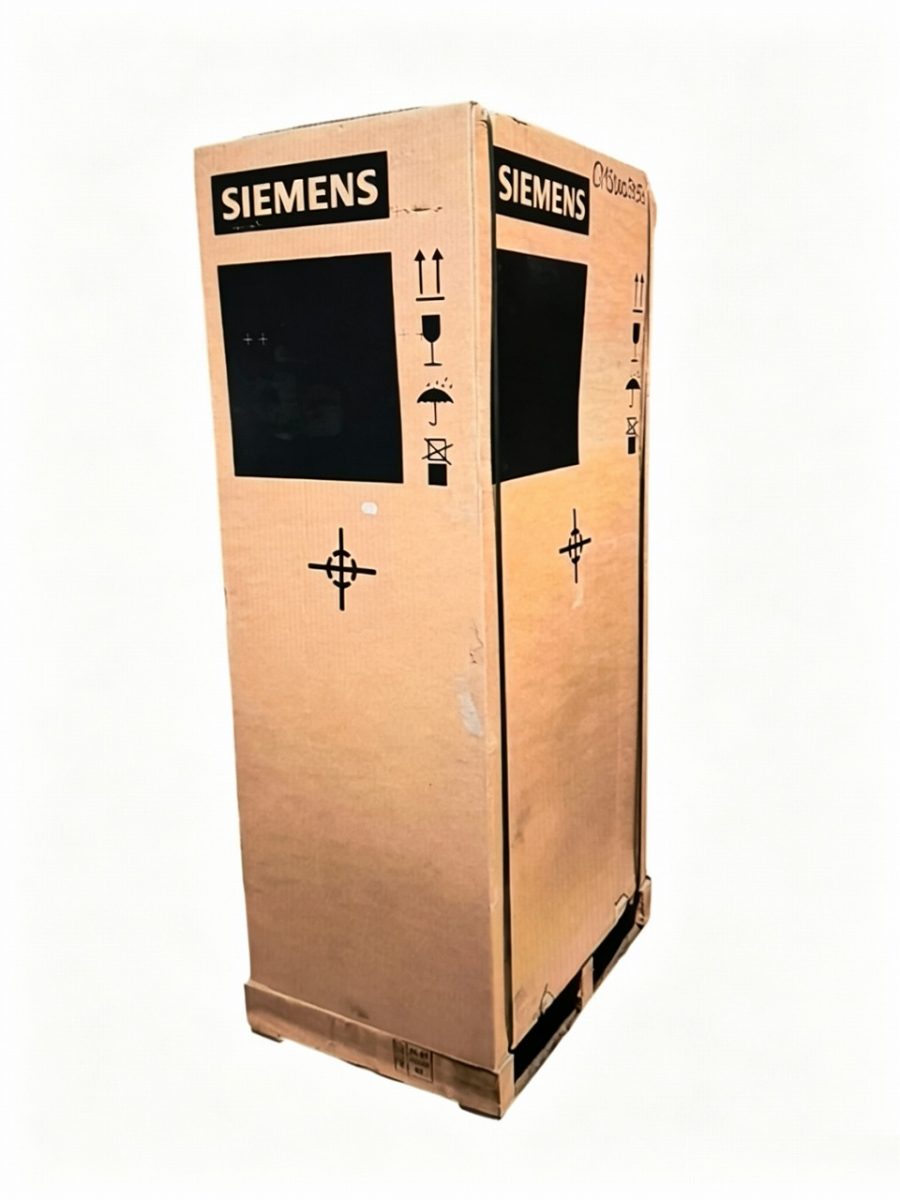

Image similar
SINAMICS G120XA Rated power 315kW 3AC 380V -20% to 440V +10% Integrated class A C3 filter 110% 60s per 600s without Operator Panel Integrated Fieldbus: MODBUS RTU, BACnet MS/TP, USS 6DI, 4DQ, 2AI, 2AQ, 1Mot_t Protection: IP20 Frame Size: FSH 1487.5x548x410 (HxWxD)
| Product | |
| Article Number (Market Facing Number) | 6SL3220-1YD56-0CB0 |
| Product Description | SINAMICS G120XA Rated power 315kW 3AC 380V -20% to 440V +10% Integrated class A C3 filter 110% 60s per 600s without Operator Panel Integrated Fieldbus: MODBUS RTU, BACnet MS/TP, USS 6DI, 4DQ, 2AI, 2AQ, 1Mot_t Protection: IP20 Frame Size: FSH 1487.5x548x410 (HxWxD) |
| Series name | SINAMICS G120XA |
| Rated power | |
| Power Rated | 315kW |
| Power voltage | 3AC 380V |
| Rated current (LO) | 617.00 A |
| Protection Level | IP20 |
| Frame Size | 1487.5x548x410 (HxWxD) |
| Frequency | 47 … 63 Hz |
| Warranty | 1 YEAR |
| Net Weight (kg) | 132.000 Kg |
| Packaging Dimension | Not available |
| Country of origin | China |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information | |
| EAN | Not available |
| UPC | Not available |
| Commodity Code | 8504409999 |
| LKZ_FDB/ CatalogID | D11.1SD |
| Product Group | 4R50 |
| Group Code | R220 |
