General description

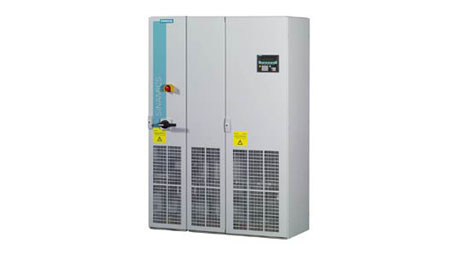

SINAMICS S150 cabinet units have been designed for variable-speed drives in machine building and plant construction. They are particularly suitable for use with variable-speed drives with high requirements regarding dynamic response and speed accuracy, frequent braking cycles with high braking energies, and four-quadrant operation.
SINAMICS S150 offers high-performance speed control with high accuracy and dynamic response.
The cabinet units are available for an output range from 75 kW to 1200 kW.
Features
Design:
SINAMICS S150 are ready-to-connect converters in a standard control cabinet.
A comprehensive range of options permits adaptation to the respective requirements.
Different designs permit the power supply and motor connections to be located at the top or bottom. This results in high flexibility for the plant installation.
They are available with cabinet widths from 1400 mm upwards in intervals of 200 mm. The standard degree of protection of the cabinets is IP20. It can be optionally extended up to IP54.
The user-friendly AOP30 operator panel is fitted as standard in the cabinet door.
Customer benefits
Regenerative feedback as standard, therefore unrestricted four-quadrant operation possible
Significant energy savings, particularly with frequent braking cycles
Highly exact and highly dynamic mains supply through use of IGBTs; robust in the case of line voltage fluctuations
Injection of almost sinusoidal line current through fast current control
An innovative clean power filter means that low-frequency reactions on the system are almost negligible. Losses in the low-voltage distribution and/or mains transformer and in the power supply line resulting from harmonic currents are therefore also avoided
Possibility for compensation of reactive power (inductive or capacitive)
Maximum servicing friendliness with easy accessibility to all modules
Problem-free interfacing into automation solutions using a standard PROFIBUS interface and various analog and digital interfaces
Increase in plant availability through easy, fast replacement of individual modules and power components
Simple start-up and parameterization using interactive menus on the user-friendly AOP30 operator panel with LCD display incorporating graphics capability and plain text display
Typical applications
SINAMICS S150 is used wherever maximum requirements exist for process sequences with dynamic and reproducible procedures, e.g. :
Moving: Belt conveyors, cranes, test stands
Processing: Mechanical presses
Technical data overview
|
|
|
|
Supply voltages:
380 to 480 V 3AC
660 to 690 V 3AC |
Output ranges:
110 to 250 kW, up to 800 kW (available soon)
75 to 315 kW, up to 1200 kW (available soon) |
| Supply systems: |
TN/TT or IT |
| Line frequency: |
47 to63 Hz |
| Output frequency: |
0 to 300 Hz |
| Control method: |
Vector control with and without encoder, or V/f control |
| Fixed frequencies: |
15 fixed frequencies plus 1 basic frequency, programmable |
| Skipped frequency bands: |
4, programmable |
| Customer terminal block: |
Digital inputs/outputs
Analog inputs/outputs
Inputs for motor temperature evaluation
Variable number |
| Communications interface: |
PROFIBUS DP as standard |
| Braking mode: |
4-quadrant operation possible as standard |
| Degree of protection: |
IP20; optionally: IP21, IP23, IP54 |
| Type of cooling: |
Internal fan (forced air cooling) |
| Noise level: |
≤ 78 dB (A) with 50 Hz line frequency |
| Cabinet system: |
Rittal TS 8 |
| Conformity: |
CE |
| Software functions: |
– Smooth connection of converter to rotating motor
– Kinetic buffering
– Automatic motor identification for control optimization
– Programmable ramp-up/down times
– Ramp smoothing |
| Protection functions: |
Undervoltage, overvoltage, earth fault, short-circuit, stall prevention, thermal motor protection, thermal converter protection |
| Safety functions: |
STO, SS1;
SLS, SSM, SOS, SS2: sin/cos encoder required for cabinet and chassis units
(Integrated safety functions with drives) |
| Suitable motors: |
Induction motors |
|
