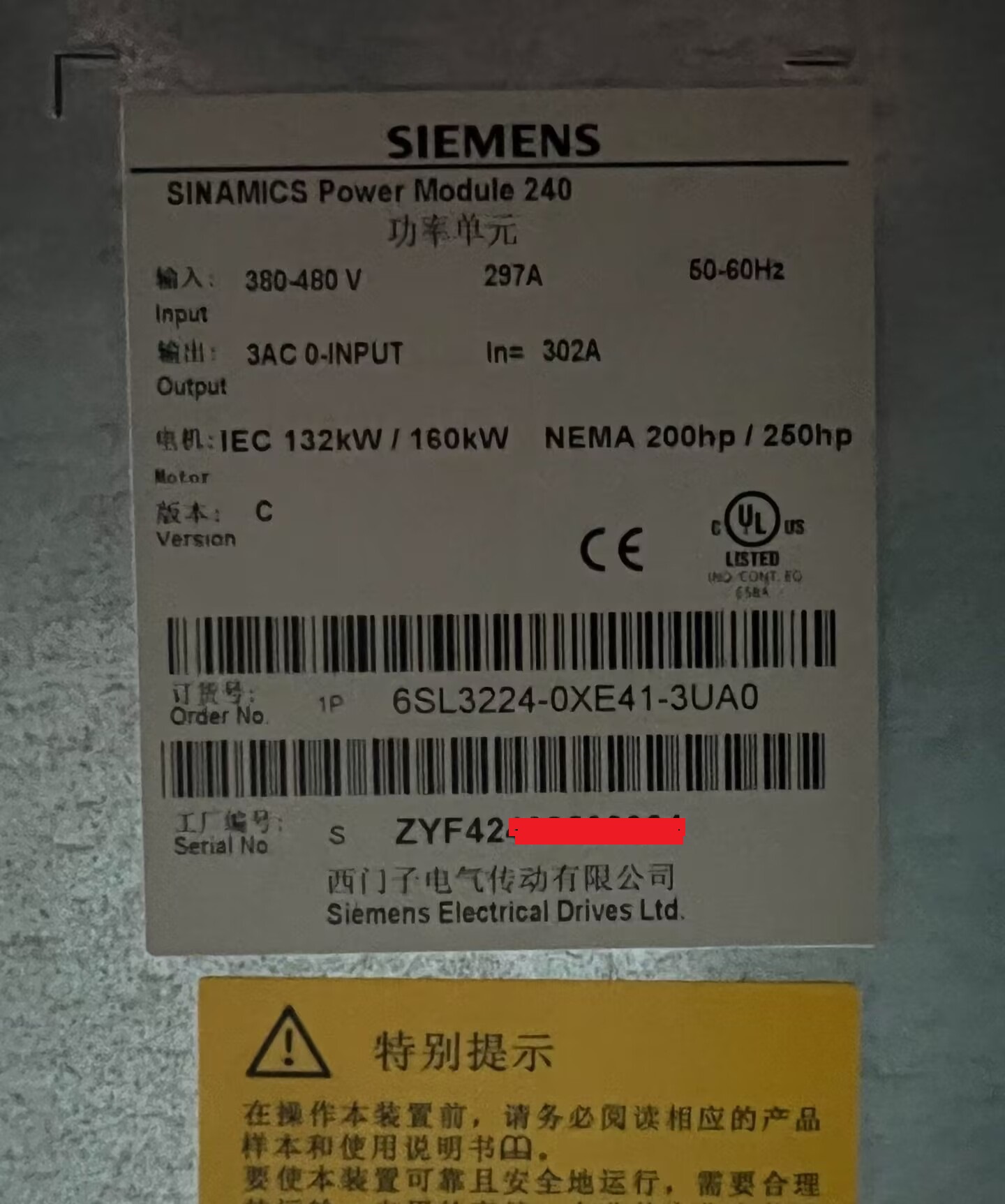

6SL3224-0XE41-3UA0
***spare part*** SINAMICS G120 PM 240 Power Module unfiltered without integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz power high overload: 132 kW at 160% 3s, 136% 57s, 100% 240 s; ambient temperature 0 to +50 °C, power low overload: 160 kW at 150% 3 s, 110% 57 s, 100% 240 s; ambient temperature 0 to +40 °C 1533x 326x 545 (HxWxD), FSGX degree of protection IP20 without Control Unit and BOP
| Product | ||||
| Article Number (Market Facing Number) | 6SL3224-0XE41-3UA0 | |||
| Product Description | ***spare part*** SINAMICS G120 PM 240 Power Module unfiltered without integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz power high overload: 132 kW at 160% 3s, 136% 57s, 100% 240 s; ambient temperature 0 to +50 °C, power low overload: 160 kW at 150% 3 s, 110% 57 s, 100% 240 s; ambient temperature 0 to +40 °C 1533x 326x 545 (HxWxD), FSGX degree of protection IP20 without Control Unit and BOP | |||
| Product family | Not available | |||
| Product Lifecycle (PLM) | PM410:Product cancellation | |||
| PLM Effective Date | Product is cancelled since: 01.10.2021 | |||
| Notes |
This product is a Spare Part, please visit the Spares & Service section for more information
If you need assistance please contact our local Siemens office
|
|||
| Price data | ||||
| Region Specific PriceGroup / Headquarter Price Group | S60 / 3A2 | |||
| List Price | Price On Request | |||
| Customer Price | ||||
| Surcharge for Raw Materials | None | |||
| Metal Factor | None | |||
| Delivery information | ||||
| Export Control Regulations | ECCN : 3A999A / AL : N | |||
| Standard lead time ex-works | On request | |||
| Net Weight (kg) | 170,000 Kg | |||
| Packaging Dimension | 61,00 x 83,00 x 177,00 | |||
| Package size unit of measure | CM | |||
| Quantity Unit | 1 Piece | |||
| Packaging Quantity | 1 | |||
| Additional Product Information | ||||
| EAN | 4019169457330 | |||
| UPC | 040892552270 | |||
| Commodity Code | 85044088 | |||
| LKZ_FDB/ CatalogID | D11.1SD | |||
| Product Group | 9486 | |||
| Group Code | R2S3 | |||
| Country of origin | Germany | |||
| Compliance with the substance restrictions according to RoHS directive | Since: 13.07.2017 | |||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||
| REACH Art. 33 Duty to inform according to the current list of candidates |
|
|||
| Classifications | ||||
| Not available | ||||
