Product description

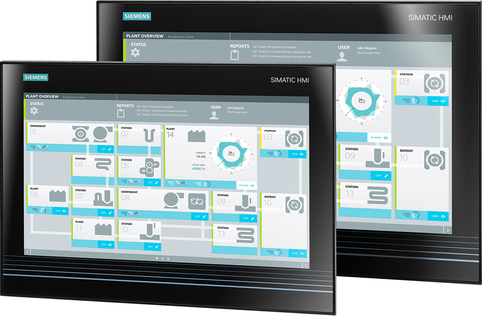

The SIMATIC IPC277D provides high-level industrial performance.
● Compact design
● Rugged
● Maintenance-free operation possible
SIMATIC IPC277D is available with various control units that differ with regard to the display
size. This display is a color display with a backlit “wide-screen” format TFT color display.
Displays are available in the following sizes for the SIMATIC IPC277D:
Components of the operator control unit:
The operator control units are available in the following versions:
7″ touch
- 7″ TFT color display, 800 x 480 pixels
- Resistive analog touch screen
9″ touch
- 9″ TFT color display, 800 x 480 pixels
- Resistive analog touch screen
12″ touch
- 12″ TFT color display, 1 280 x 800 pixels
- Resistive analog touch screen
15″ touch
- 15″ TFT color display, 1 280 x 800 pixels
- Resistive analog touch screen
- USB front interface
19″ touch
- 19″ TFT color display, 1 366 x 768 pixels
- Resistive analog touch screen
- USB front interface
Basic data
Power supply : 24V DC (19.2 to 28.8 V), max. 1.8 A
Conditions of use : Operation without fan
Monitoring and safety functions
Watchdog • Monitoring function for program execution
• Restart can be parameterized in the event of a fault
Voltage drop : Up to 15 ms buffer time at full load
Buffer memory : 512 KB MRAM
Application
The SIMATIC IPC277D Nanopanel PC is a particularly compact and energy-saving Nanopanel PC with integrated touch displays with 7″ screen diagonal or larger. At the heart of the SIMATIC IPC277D Nanopanel PC are high-performance Intel Atom processors of the latest generation. The Nanopanel PCs are designed for maintenance-free 24-hour continuous use as well as for high temperature, vibration, shock and EMC requirements in the following applications:
- Simple visualization and control tasks, for example in mechanical engineering, plant construction, transportation systems or power transmission.
- Acquisition, further processing and visualization of data
- All machine-level applications created in C/C++ or with WinAC/WinCC RT Advanced that require rugged, compact IPCs
- Additional new applications such as shipbuilding, building automation, storage & logistics
The application spectrum ranges from automation computers fully integrated in TIA with, for example, WinAC to C/C++-based automation solutions with the customer-specific operating systems. For software products that require Windows XP Professional and Windows 7 Ultimate, these operating systems are offered pre-installed on the solid-state drive (multi-language in each case).
The SIMATIC IPC277D Nanopanel PC can be used in conjunction with WinCC RT Advanced and/or with WinAC RTX 2010/F as a ready-to-run bundle and is available at an attractive price.
IPC277D_datasheet
SIMATIC IPC277D
Part number
Product Description
Brand
Series name
6AV7881-3AE00-2BA0
SIMATIC IPC277D (Nanopanel PC) 12" Touch TFT; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); Compact Flash slot; 24 V DC power supply ATOM E660 (1.3 GHz), 2 GB RAM standard front 4 GB SIMATIC PC CompactFlash WES 2009 SP3 (CF 2 GB or more/SSD) without SIMATIC software
Siemens
IPC277D
6AV7881-2AA00-3DA0
SIMATIC IPC277D (Nanopanel PC) 9" Touch TFT, 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); CompactFlash slot; 24 V DC power supply ATOM E640 (1.0 GHz), 1 GB RAM standard front 8 GB SIMATIC PC CompactFlash WES 7 SP1 (CF 4 GB or more/SSD) without SIMATIC software
Siemens
IPC277D
6AV7881-1AE00-8EA0
***No longer available*** SIMATIC IPC277D (Nanopanel PC) 7" Touch TFT; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); CompactFlash slot; 24 V DC power supply ATOM E660 (1.3 GHz), 2 GB RAM standard front 80 GB Solid-State-Drive SATA Windows 7 SP1, MUI (SSD) without SIMATIC software
Siemens
IPC277D
6AV7881-5AE00-1BA0
***No longer available*** SIMATIC IPC277D (Nanopanel PC) 19" Touch TFT, Front USB; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); CompactFlash slot; 24 V DC power supply ATOM E660 (1.3 GHz), 2 GB RAM standard front 2 GB SIMATIC PC CompactFlash WES 2009 SP3 (CF 2 GB or more/SSD) without SIMATIC software
Siemens
IPC277D
6AV7881-3AE00-4BA0
SIMATIC IPC277D (Nanopanel PC) 12" Touch TFT; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); CompactFlash slot; 24 V DC power supply ATOM E660 (1.3 GHz), 2 GB RAM standard front 16 GB SIMATIC PC CompactFlash WES 2009 SP3 (CF 2 GB or more/SSD) without SIMATIC software
Siemens
IPC277D
6AV7881-3AB00-2BA0
***No longer available*** SIMATIC IPC277D (Nanopanel PC) 12" Touch TFT; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); CompactFlash slot; 24 V DC power supply ATOM E640 (1.0 GHz), 1 GB RAM; Retentivity standard front 4 GB SIMATIC PC CompactFlash WES 2009 SP3 (CF 2 GB or more/SSD) without SIMATIC software
Siemens
IPC277D
6AV7881-4AE00-2BA0
SIMATIC IPC277D (Nanopanel PC) 15" Touch TFT, Front USB; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); CompactFlash slot; 24 V DC power supply ATOM E660 (1.3 GHz), 2 GB RAM standard front 4 GB SIMATIC PC CompactFlash WES 2009 SP3 (CF 2 GB or more/SSD) without SIMATIC software
Siemens
IPC277D
6AV7881-3AE00-8DH0
SIMATIC IPC277D (Nanopanel PC) 12" Touch TFT; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); CompactFlash slot; 24 V DC power supply ATOM E660 (1.3 GHz), 2 GB RAM standard front 80 GB Solid-State-Drive SATA WES 7 SP1 (CF 4 GB or more/SSD) WinCC Advanced RT V13 2048 PT (including logging and recipes); WinCC RT Adv. V14 license package;
Siemens
IPC277D
6AV7881-5AF00-8DH0
SIMATIC IPC277D (NANOPANEL PC)
19" TOUCH TFT, FRONT USB;2 X 10/100/1000 MBIT/SETHERNET RJ45;3 X USB V2.0 (HIGH CURRENT);1 X SERIAL (COM1);COMPACTFLASH SLOT;24V DC POWER SUPPLY;ATOM E660 (1.3 GHZ), 2GB RAM;REMANENCE;STANDARD FRONT;80 GB SOLID-STATE DRIVE SATA;WES 7 SP1 (CF FROM 4 GB/SSD);WINCC ADVANCED RT V13 2048 PT(INCL. LOGGING AND RECIPES);
Siemens
IPC277D
6AV2124-6GJ00-0AX0
Protective film 7" widescreen f. KTP700 Basic 2nd Generation, TP700 Comfort, IPC277D Quantity: see technical data
Siemens
IPC277D
6AV7881-3AA00-7CA0
***No longer available*** SIMATIC IPC277D (Nanopanel PC) 12" Touch TFT; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); CompactFlash slot; 24 V DC power supply ATOM E640 (1.0 GHz), 1 GB RAM standard front 50 GB SSD SATA (high endurance) XP Prof. SP3, MUI (SSD) without SIMATIC software
Siemens
IPC277D
6AV7881-5AE00-3DA0
***No longer available*** SIMATIC IPC277D (Nanopanel PC) 19" Touch TFT, Front USB; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); CompactFlash slot; 24 V DC power supply ATOM E660 (1.3 GHz), 2 GB RAM standard front 8 GB SIMATIC PC CompactFlash WES 7 SP1 (CF 4 GB or more/SSD) without SIMATIC software
Siemens
IPC277D
6AV7881-1AF00-2BC0
***No longer available*** SIMATIC IPC277D (Nanopanel PC) 7" Touch TFT; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); CompactFlash slot; 24 V DC power supply ATOM E660 (1.3 GHz), 2 GB RAM; Retentivity standard front 4 GB SIMATIC PC CompactFlash WES 2009 SP3 (CF 2 GB or more/SSD) WinAC RTX F 2010
Siemens
IPC277D
6AV7413-4AB00-1FW0
SIMATIC IPC277D, 12" Touch, incl. WinCC FLEX RT 512 license and SIMATIC WinCC flexible/Archives customer-specific design B, only for FLOTTWEG, Basic: 6AV7881-3AE00-3DA0
Siemens
IPC277D
6AV7881-3AB00-7CA0
***No longer available*** SIMATIC IPC277D (Nanopanel PC) 12" Touch TFT; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); CompactFlash slot; 24 V DC power supply ATOM E640 (1.0 GHz), 1 GB RAM; Retentivity standard front 50 GB SSD SATA (high endurance) XP Prof. SP3, MUI (SSD) without SIMATIC software
Siemens
IPC277D
6AV7881-3AE00-2DA0
***No longer available*** SIMATIC IPC277D (Nanopanel PC) 12" Touch TFT; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); CompactFlash slot; 24 V DC power supply ATOM E660 (1.3 GHz), 2 GB RAM standard front 4 GB SIMATIC PC CompactFlash WES 7 SP1 (CF 4 GB or more/SSD) without SIMATIC software
Siemens
IPC277D
6AV7881-4AE00-3DF0
SIMATIC IPC277D (NANOPANEL PC)
15" TOUCH TFT, FRONT USB;2 X 10/100/1000 MBIT/SETHERNET RJ45;3 X USB V2.0 (HIGH CURRENT);1 X SERIAL (COM1);COMPACTFLASH SLOT;24V DC POWER SUPPLY;ATOM E660 (1.3 GHZ), 2GB RAM;STANDARD FRONT;8 GB SIMATIC PC COMPACTFLASH;WES 7 SP1 (CF FROM 4 GB/SSD);WINCC ADVANCED RT V13 128 PT(INCL. LOGGING AND RECIPES);
Siemens
IPC277D
6AV2124-6MJ00-0AX0
PROTECT. FILM 12" WIDESCREEN TYPE 1 FOR TP1200 COMFORT, IPC277D AMOUNT: SEE TECHNICAL DATA
Siemens
IPC277D
6AV7881-3AE00-8EA0
SIMATIC IPC277D (Nanopanel PC) 12" Touch TFT; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); Compact Flash slot; 24 V DC power supply ATOM E660 (1.3 GHz), 2 GB RAM standard front 80 GB Solid-State-Drive SATA Windows 7 SP1, MUI (SSD) without SIMATIC software
Siemens
IPC277D
6AV7881-1AE00-2DH0
SIMATIC IPC277D (Nanopanel PC) 7" Touch TFT; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); Compact Flash slot; 24 V DC power supply ATOM E660 (1.3 GHz), 2 GB RAM standard front 4 GB SIMATIC PC CompactFlash WES 7 SP1 (CF 4 GB or more/SSD) WinCC Advanced RT V13 2048 PT (including logging and recipes); WinCC RT Adv. V14 license package;
Siemens
IPC277D
6AV7881-3AF00-3DM0
SIMATIC IPC277D (Nanopanel PC) 12" Touch TFT; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); Compact Flash slot; 24 V DC power supply ATOM E660 (1.3 GHz), 2 GB RAM; Retentivity standard front 8 GB SIMATIC PC CompactFlash WES 7 SP1 (CF 4 GB or more/SSD) WinAC RTX 2010; WinCC Advanced RT V13 128 PT (including logging and recipes); WinCC RT Adv. V14 license package;
Siemens
IPC277D
6AV7881-1AA00-2BA0
***No longer available*** SIMATIC IPC277D (Nanopanel PC) 7" Touch TFT; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); CompactFlash slot; 24 V DC power supply ATOM E640 (1.0 GHz), 1 GB RAM standard front 4 GB SIMATIC PC CompactFlash WES 2009 SP3 (CF 2 GB or more/SSD) without SIMATIC software
Siemens
IPC277D
6AV7881-3AE00-4DA0
SIMATIC IPC277D (NANOPANEL PC) 12" TOUCH TFT; 2 X 10/100/1000 MBIT/S ETHERNET RJ45; 3 X USB V2.0 (HIGH CURRENT); 1 X SERIAL (COM1); COMPACTFLASH SLOT; 24V DC POWER SUPPLY
Siemens
IPC277D
6AV7881-3AA00-2BA0
SIMATIC IPC277D (NANOPANEL PC) 12" TOUCH TFT; 2 X 10/100/1000 MBIT/S ETHERNET RJ45; 3 X USB V2.0 (HIGH CURRENT); 1 X SERIAL (COM1); COMPACTFLASH SLOT; 24V DC POWER SUPPLY; ATOM E640 (1,0 GHZ), 1GB RAM;
Siemens
IPC277D
6AV7881-3AE00-3DA0
SIMATIC IPC277D (NANOPANEL PC) 12" TOUCH TFT; 2 X 10/100/1000 MBIT/S ETHERNET RJ45; 3 X USB V2.0 (HIGH CURRENT); 1 X SERIAL (COM1); COMPACTFLASH SLOT; 24V DC POWER SUPPLY; ATOM E660 (1.3 GHZ), 2GB RAM; STANDARD FRONT
Siemens
IPC277D
6AV7881-1AE00-7CA0
SIMATIC IPC277D (NANOPANEL PC) 7" TOUCH TFT; 2 X 10/100/1000 MBIT/S ETHERNET RJ45; 3 X USB V2.0 (HIGH CURRENT); 1 X SERIAL (COM1); COMPACTFLASH SLOT; 24V DC POWER SUPPLY
Siemens
IPC277D
| Part number | Product Description | Brand | Series name |
| 6AV7881-3AE00-2BA0 | SIMATIC IPC277D (Nanopanel PC) 12" Touch TFT; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); Compact Flash slot; 24 V DC power supply ATOM E660 (1.3 GHz), 2 GB RAM standard front 4 GB SIMATIC PC CompactFlash WES 2009 SP3 (CF 2 GB or more/SSD) without SIMATIC software | Siemens | IPC277D |
| 6AV7881-2AA00-3DA0 | SIMATIC IPC277D (Nanopanel PC) 9" Touch TFT, 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); CompactFlash slot; 24 V DC power supply ATOM E640 (1.0 GHz), 1 GB RAM standard front 8 GB SIMATIC PC CompactFlash WES 7 SP1 (CF 4 GB or more/SSD) without SIMATIC software | Siemens | IPC277D |
| 6AV7881-1AE00-8EA0 | ***No longer available*** SIMATIC IPC277D (Nanopanel PC) 7" Touch TFT; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); CompactFlash slot; 24 V DC power supply ATOM E660 (1.3 GHz), 2 GB RAM standard front 80 GB Solid-State-Drive SATA Windows 7 SP1, MUI (SSD) without SIMATIC software | Siemens | IPC277D |
| 6AV7881-5AE00-1BA0 | ***No longer available*** SIMATIC IPC277D (Nanopanel PC) 19" Touch TFT, Front USB; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); CompactFlash slot; 24 V DC power supply ATOM E660 (1.3 GHz), 2 GB RAM standard front 2 GB SIMATIC PC CompactFlash WES 2009 SP3 (CF 2 GB or more/SSD) without SIMATIC software | Siemens | IPC277D |
| 6AV7881-3AE00-4BA0 | SIMATIC IPC277D (Nanopanel PC) 12" Touch TFT; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); CompactFlash slot; 24 V DC power supply ATOM E660 (1.3 GHz), 2 GB RAM standard front 16 GB SIMATIC PC CompactFlash WES 2009 SP3 (CF 2 GB or more/SSD) without SIMATIC software | Siemens | IPC277D |
| 6AV7881-3AB00-2BA0 | ***No longer available*** SIMATIC IPC277D (Nanopanel PC) 12" Touch TFT; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); CompactFlash slot; 24 V DC power supply ATOM E640 (1.0 GHz), 1 GB RAM; Retentivity standard front 4 GB SIMATIC PC CompactFlash WES 2009 SP3 (CF 2 GB or more/SSD) without SIMATIC software | Siemens | IPC277D |
| 6AV7881-4AE00-2BA0 | SIMATIC IPC277D (Nanopanel PC) 15" Touch TFT, Front USB; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); CompactFlash slot; 24 V DC power supply ATOM E660 (1.3 GHz), 2 GB RAM standard front 4 GB SIMATIC PC CompactFlash WES 2009 SP3 (CF 2 GB or more/SSD) without SIMATIC software | Siemens | IPC277D |
| 6AV7881-3AE00-8DH0 | SIMATIC IPC277D (Nanopanel PC) 12" Touch TFT; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); CompactFlash slot; 24 V DC power supply ATOM E660 (1.3 GHz), 2 GB RAM standard front 80 GB Solid-State-Drive SATA WES 7 SP1 (CF 4 GB or more/SSD) WinCC Advanced RT V13 2048 PT (including logging and recipes); WinCC RT Adv. V14 license package; | Siemens | IPC277D |
| 6AV7881-5AF00-8DH0 | SIMATIC IPC277D (NANOPANEL PC) 19" TOUCH TFT, FRONT USB;2 X 10/100/1000 MBIT/SETHERNET RJ45;3 X USB V2.0 (HIGH CURRENT);1 X SERIAL (COM1);COMPACTFLASH SLOT;24V DC POWER SUPPLY;ATOM E660 (1.3 GHZ), 2GB RAM;REMANENCE;STANDARD FRONT;80 GB SOLID-STATE DRIVE SATA;WES 7 SP1 (CF FROM 4 GB/SSD);WINCC ADVANCED RT V13 2048 PT(INCL. LOGGING AND RECIPES); | Siemens | IPC277D |
| 6AV2124-6GJ00-0AX0 | Protective film 7" widescreen f. KTP700 Basic 2nd Generation, TP700 Comfort, IPC277D Quantity: see technical data | Siemens | IPC277D |
| 6AV7881-3AA00-7CA0 | ***No longer available*** SIMATIC IPC277D (Nanopanel PC) 12" Touch TFT; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); CompactFlash slot; 24 V DC power supply ATOM E640 (1.0 GHz), 1 GB RAM standard front 50 GB SSD SATA (high endurance) XP Prof. SP3, MUI (SSD) without SIMATIC software | Siemens | IPC277D |
| 6AV7881-5AE00-3DA0 | ***No longer available*** SIMATIC IPC277D (Nanopanel PC) 19" Touch TFT, Front USB; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); CompactFlash slot; 24 V DC power supply ATOM E660 (1.3 GHz), 2 GB RAM standard front 8 GB SIMATIC PC CompactFlash WES 7 SP1 (CF 4 GB or more/SSD) without SIMATIC software | Siemens | IPC277D |
| 6AV7881-1AF00-2BC0 | ***No longer available*** SIMATIC IPC277D (Nanopanel PC) 7" Touch TFT; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); CompactFlash slot; 24 V DC power supply ATOM E660 (1.3 GHz), 2 GB RAM; Retentivity standard front 4 GB SIMATIC PC CompactFlash WES 2009 SP3 (CF 2 GB or more/SSD) WinAC RTX F 2010 | Siemens | IPC277D |
| 6AV7413-4AB00-1FW0 | SIMATIC IPC277D, 12" Touch, incl. WinCC FLEX RT 512 license and SIMATIC WinCC flexible/Archives customer-specific design B, only for FLOTTWEG, Basic: 6AV7881-3AE00-3DA0 | Siemens | IPC277D |
| 6AV7881-3AB00-7CA0 | ***No longer available*** SIMATIC IPC277D (Nanopanel PC) 12" Touch TFT; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); CompactFlash slot; 24 V DC power supply ATOM E640 (1.0 GHz), 1 GB RAM; Retentivity standard front 50 GB SSD SATA (high endurance) XP Prof. SP3, MUI (SSD) without SIMATIC software | Siemens | IPC277D |
| 6AV7881-3AE00-2DA0 | ***No longer available*** SIMATIC IPC277D (Nanopanel PC) 12" Touch TFT; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); CompactFlash slot; 24 V DC power supply ATOM E660 (1.3 GHz), 2 GB RAM standard front 4 GB SIMATIC PC CompactFlash WES 7 SP1 (CF 4 GB or more/SSD) without SIMATIC software | Siemens | IPC277D |
| 6AV7881-4AE00-3DF0 | SIMATIC IPC277D (NANOPANEL PC) 15" TOUCH TFT, FRONT USB;2 X 10/100/1000 MBIT/SETHERNET RJ45;3 X USB V2.0 (HIGH CURRENT);1 X SERIAL (COM1);COMPACTFLASH SLOT;24V DC POWER SUPPLY;ATOM E660 (1.3 GHZ), 2GB RAM;STANDARD FRONT;8 GB SIMATIC PC COMPACTFLASH;WES 7 SP1 (CF FROM 4 GB/SSD);WINCC ADVANCED RT V13 128 PT(INCL. LOGGING AND RECIPES); | Siemens | IPC277D |
| 6AV2124-6MJ00-0AX0 | PROTECT. FILM 12" WIDESCREEN TYPE 1 FOR TP1200 COMFORT, IPC277D AMOUNT: SEE TECHNICAL DATA | Siemens | IPC277D |
| 6AV7881-3AE00-8EA0 | SIMATIC IPC277D (Nanopanel PC) 12" Touch TFT; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); Compact Flash slot; 24 V DC power supply ATOM E660 (1.3 GHz), 2 GB RAM standard front 80 GB Solid-State-Drive SATA Windows 7 SP1, MUI (SSD) without SIMATIC software | Siemens | IPC277D |
| 6AV7881-1AE00-2DH0 | SIMATIC IPC277D (Nanopanel PC) 7" Touch TFT; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); Compact Flash slot; 24 V DC power supply ATOM E660 (1.3 GHz), 2 GB RAM standard front 4 GB SIMATIC PC CompactFlash WES 7 SP1 (CF 4 GB or more/SSD) WinCC Advanced RT V13 2048 PT (including logging and recipes); WinCC RT Adv. V14 license package; | Siemens | IPC277D |
| 6AV7881-3AF00-3DM0 | SIMATIC IPC277D (Nanopanel PC) 12" Touch TFT; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); Compact Flash slot; 24 V DC power supply ATOM E660 (1.3 GHz), 2 GB RAM; Retentivity standard front 8 GB SIMATIC PC CompactFlash WES 7 SP1 (CF 4 GB or more/SSD) WinAC RTX 2010; WinCC Advanced RT V13 128 PT (including logging and recipes); WinCC RT Adv. V14 license package; | Siemens | IPC277D |
| 6AV7881-1AA00-2BA0 | ***No longer available*** SIMATIC IPC277D (Nanopanel PC) 7" Touch TFT; 2x 10/100/1000 Mbps Ethernet RJ45; 3x USB V2.0 (high current); 1x serial (COM 1); CompactFlash slot; 24 V DC power supply ATOM E640 (1.0 GHz), 1 GB RAM standard front 4 GB SIMATIC PC CompactFlash WES 2009 SP3 (CF 2 GB or more/SSD) without SIMATIC software | Siemens | IPC277D |
| 6AV7881-3AE00-4DA0 | SIMATIC IPC277D (NANOPANEL PC) 12" TOUCH TFT; 2 X 10/100/1000 MBIT/S ETHERNET RJ45; 3 X USB V2.0 (HIGH CURRENT); 1 X SERIAL (COM1); COMPACTFLASH SLOT; 24V DC POWER SUPPLY | Siemens | IPC277D |
| 6AV7881-3AA00-2BA0 | SIMATIC IPC277D (NANOPANEL PC) 12" TOUCH TFT; 2 X 10/100/1000 MBIT/S ETHERNET RJ45; 3 X USB V2.0 (HIGH CURRENT); 1 X SERIAL (COM1); COMPACTFLASH SLOT; 24V DC POWER SUPPLY; ATOM E640 (1,0 GHZ), 1GB RAM; | Siemens | IPC277D |
| 6AV7881-3AE00-3DA0 | SIMATIC IPC277D (NANOPANEL PC) 12" TOUCH TFT; 2 X 10/100/1000 MBIT/S ETHERNET RJ45; 3 X USB V2.0 (HIGH CURRENT); 1 X SERIAL (COM1); COMPACTFLASH SLOT; 24V DC POWER SUPPLY; ATOM E660 (1.3 GHZ), 2GB RAM; STANDARD FRONT | Siemens | IPC277D |
| 6AV7881-1AE00-7CA0 | SIMATIC IPC277D (NANOPANEL PC) 7" TOUCH TFT; 2 X 10/100/1000 MBIT/S ETHERNET RJ45; 3 X USB V2.0 (HIGH CURRENT); 1 X SERIAL (COM1); COMPACTFLASH SLOT; 24V DC POWER SUPPLY | Siemens | IPC277D |
