SIMATIC S7-200 SMART

S7-200 SMART Programmable controller

Siemens is synonymous with innovation, especially in the domain of industrial automation. Committed to R&D, promotion and application of latest technologies, Siemens has been instrumental in enhancing our customers’ competitiveness for over 140 years. Our state-of-the art automation products
and solutions not only improve production efficiency but also reduce total cost
of ownership.
One such innovation from the house of Siemens is the SIMATIC controller series. These Programmable Logic Controllers (PLC) from Siemens offer a wide
range of selection options starting from the most basic logic controller ‘LOGO!’ to powerful SIMATIC S7 series, which are high performance programmable
controllers. For specific applications with higher demands on data storage, faster communication with embedded applications including GUI, Siemens also offers the automation controller system based on PC. Irrespective of the requirements, one can flexibly combine one or more Simatic controllers and
customize the solution optimally.
SIMATIC S7-200 SMART, our newly launched micro PLC product, is designed to suit the needs of developing markets that are under constant pressure due
to prices and demands for continuous performance. Providing an excellent performance-to-price ratio, SIMATIC S7-200 SMART when combined with other SMART drive products from Siemens helps in building an extremely cost effective yet efficient automation solution.

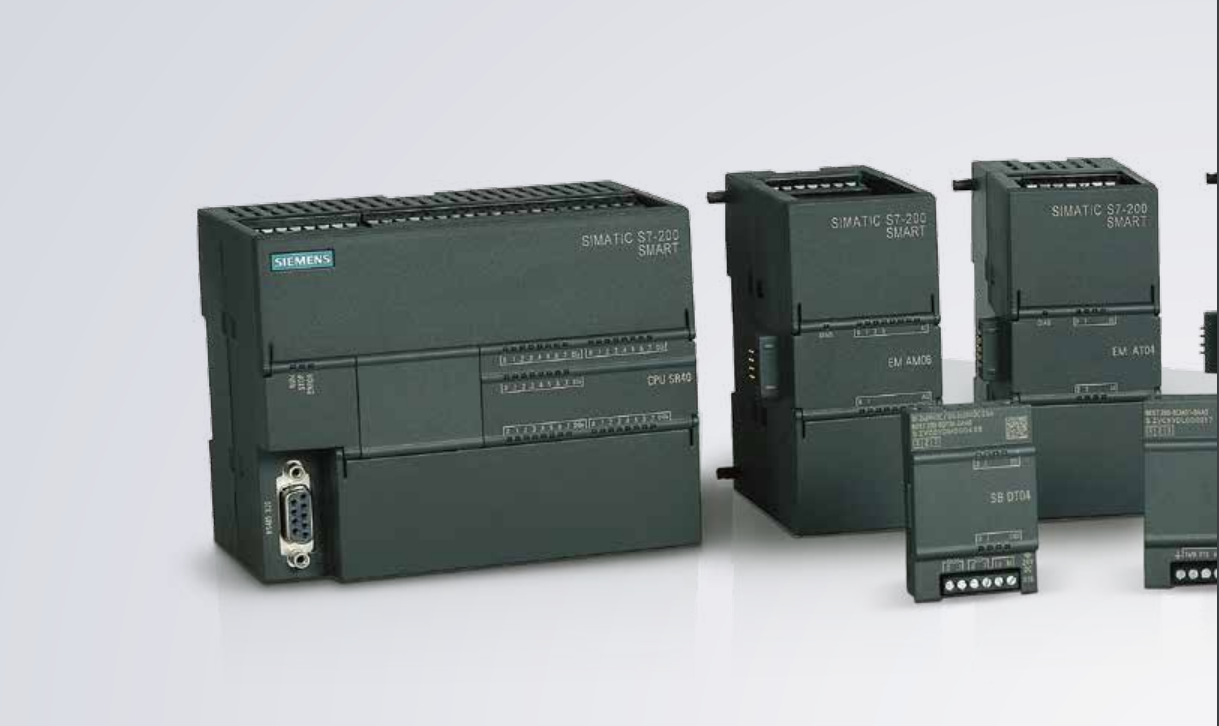

CPU module

The new S7-200 SMART has two different types of CPU modules, i.e. standard type and compact type. Standard type CPU is expandable with I/O expansion modules and signal boards. Compact type CPUs are non expandable with I/O expansion modules and signal boards.

Standard type CPU module
CPU SR20/SR30/SR40/SR60
CPU ST20/ST30/ST40/ST60

Compact type
CPU module
CPU CR40/CR60

Ethernet interface

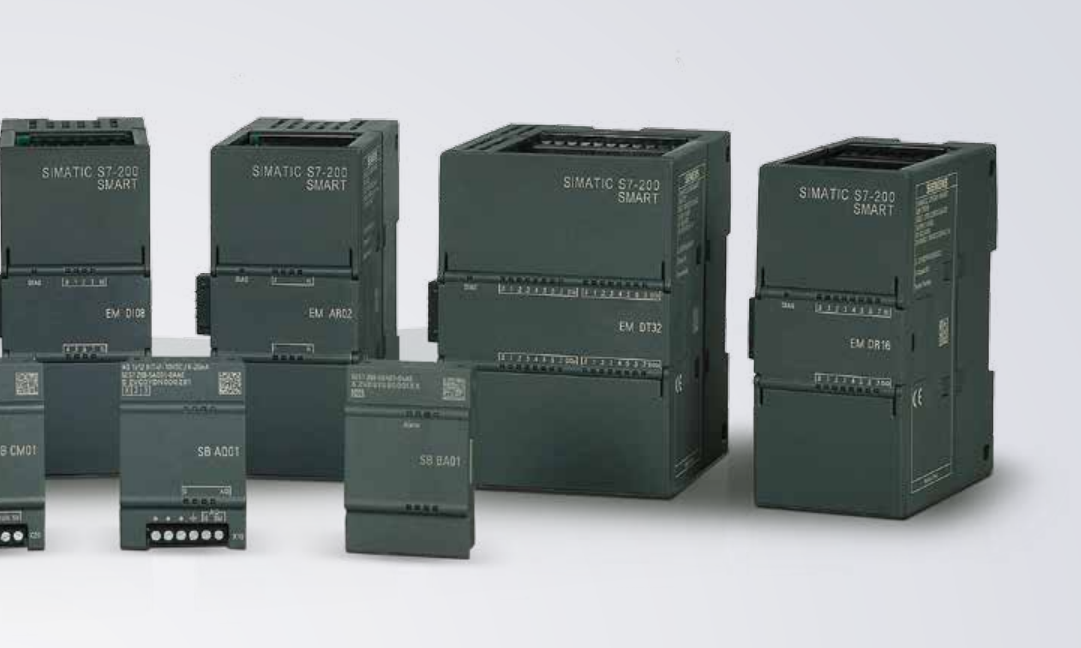

I/O expansion module
RS485 serial port
Signal board expansion
Supporting Micro SD card
Real-time clock 1)
High speed counters
High speed pulse output2)
1) Only supports the standard type CPU module
2) Only supports the standard type transistor output;

Signal board

The signal board is mounted directly on the front of the CPU body; without occupying the cabinet space, its installation and disassembly are convenient and quick. For a small amount of I/O points extension and more demand for communication ports, the signal board with new design can provide more economical and flexible solutions.

Network communication

All S7-200 SMART CPUs offer 1x Ethernet interface and the 1x RS485 interface onboard. Using Signal board CM01, one can add additional RS485/232 interface.

Motion control

S7-200 SMART CPU provides maximum three 100KHz high speed pulse outputs, it can be configured for PWM output or motion control output through the powerful and flexible setup wizard, providing a unified solution for speed and position control of both the stepper motor or servo motor, satisfying the precise positioning requirements of the small mechanical equipment.

User-friendly software improves programming efficiency

STEP 7- Micro/WIN SMART is the programming software of the S7-200 SMART, it can run smoothly on the Windows XP SP3/Windows 7 Operating System. It supports LAD (ladder diagram), STL (Statement List), FBD (function block diagram) programming languages, freely converting between parts of language, the installation file is less than 100 MB. While inheriting the excellent programming idea of the STEP 7- Micro/WIN, the more user-friendly design makes programming easier and project development more efficient.

SMART micro automation solutions

The perfect combination of Siemens SIMATIC micro-automation products and SINAMICS drive products has created new micro automation solutions that are economical, reliable and easy to use. SIMATIC S7-200 SMART PLC, SIMATIC BASIC LINE touch/ Key HMI, SINAMICS V20 inverter and SINAMICS V90 servo system, that are of high performance-to-price ratio helps users to improve the performance of machinery and equipment, reduce the development cost, significantly shorten the launching time of the machine and equipment, and effectively improve the market competitiveness of the user.

Common SD card – Fast Update!!

The S7-200 SMART CPUs support the use of a microSDHC card for:

• User program transfer.
• Reset CPU to factory default condition.
• Firmware update of the CPU and attached expansion modules as supported
You can use any standard, commercial microSDHC card with a capacity in the range 4GB to 16GB.For detailed information about the software, consult the S7-200 SMART System Manual.

s7-200-smart-catalogue_DATASHEET

SIMATIC S7-200 SMART
