Overview

Maximum industrial compatiblity for 24-hour continuous use in industrial environments

• Independent product design with a user-friendly enclosure concept and front design
• Rugged all-metal enclosure, coated over its entire surface (blue chromated) and/or enameled on the outside to protect against corrosion and dirt
• High EM compatibility for use in industrial, business and commercial areas
• Maximum processor performance (in full configuration) without loss of performance (throttling) at up to 40 °C ambient temperature
• Dust protection through overpressure venting concept with front-side fan and dust filter
• Low noise impact thanks to closed-loop fan
• Protection against vibration and shock through corresponding drive cage (type B) and card retainer

High productivity through fast data processing

• 10th generation Intel® processors: Xeon, Core i9, Core i7, Core i5 or Core i3 up to 10 cores/ 20 threads
• Graphics controller (630) integrated in the CPU up to 4K Ultra HD resolution
• Maximum performance, e.g. through Intel W480E chipset, DDR4 memory with support of dual channel technology
• High data transfer rates, e.g. via PCI Express Technology Gen 3, USB 3.1 Gen 2 SuperSpeed + (10 Gbps), M.2 NVME SSD
• Modern hard drives with a capacity of up to 2 TB for the storage of larger data volumes and greater reliability
• Solid-state drive with up to 1024 GB as a fast replacement for hard disk drives for increased data security

Reduction in standstill times thanks to high system availability and security

• Secure 24h operation (high MTBF, speed-controlled fans)
• RAID1 configuration: Data mirroring on two drives (HDD or SSD), also in removable trays
(hot-swap) and optionally with additional SSD (for operating system) or hot-spare drive
• RAID5 configuration: Stripping with parity on three drives (HDD) for increased storage capacity in removable trays (hot-swap), optionally with additional hot-spare hard disk
• “Hot Swap” in RAID configurations: Replacing the drive (HDD) during operation
• “Hot spare” in RAID configurations: Rebuild process starts automatically on the reserve drive (“hot spare” drive; HDD)
• 3.5″ HDD/HDD Enterprise or 2.5″ SSD as RAID configurations
• Rapid identification and replacement of the drive in the event of a fault thanks to alarm displays for RAID configurations and unique numbering
• Efficient self-diagnostics using SIMATIC IPC DiagBase or DiagMonitor software (optional) for temperature, fans, program run (watchdog), battery, drives
• Status display (front LEDs) for Ethernet; alarm display for fan, temperature, watchdog and drives in RAID1 and RAID5 configurations
• Remote control and remote maintenance through iAMT (Intel® Active Management Technology)
• Redundant AC power supply with “hot swap” functionality (optional): Replacement of power supply module during operation
• Access protection for the front removable trays, control elements (power, reset), USB interfaces, dust filter and front fan by means of locked fan cover and lockable front door
• The enclosure cover can only be opened when the front door is open
• Up to two secured internal USB slots in the device, for software dongle, for example
• Service-friendly device configuration (modifications, service), e.g. installation of drives, replacement of filter or front fan without tools

Time savings due to high flexibility in commissioning, use and service

• High expandability through integrated interfaces:
– 3 x Intel® Gbit Ethernet
– 2 x USB 3.1 Gen 1 (Front)
– 4 x USB 3.1 Gen 2 (rear of device): 2 x Type A and 2 x Type C
– 2 x USB 2.0 (internal)
– 3 x graphic interfaces
– Audio
– 7 x slots for PCI and PCI-Express
• Multi Monitoring: up to 6 x DisplayPort or 7 x DVI-D via onboard graphics and optional
graphics card (partly via adapter) or 6 x VGA via adapter
• optional graphics card for high-performance graphics processing (2D, 3D) as well as for AI
applications.
• Suitable for installation in space-saving control cabinets with a depth of only 400 mm
(devices with short enclosure)
• Can be used in different positions with telescopic rails or as an industrial tower PC (tower
kit optional)
• Universal use as industrial workstation or industrial server
• Pre-installed and activated operating systems:
– Windows 10 Enterprise 2019 LTSC (64-bit)
– Windows Server 2019 (64-bit) incl. 5 clients
• Fast restoration of the delivery state by restoring from USB stick

Scope of application

The SIMATIC IPC offers system integrators, cabinet designers, system engineers and machine designers a 19″ rack PC platform for high-performance applications and IT applications on the
control and cell level for:
• Process and visualization applications
• Industrial image processing and AI applications
• Quality assurance and monitoring tasks
• Measurement, control and rule-based tasks
• Data acquisition and management
The SIMATIC IPC has CE certification for use in the industrial sector as well as in residential and commercial areas and small businesses. In addition to the industrial applications, therefore, it can also be used in building automation or in public facilities.

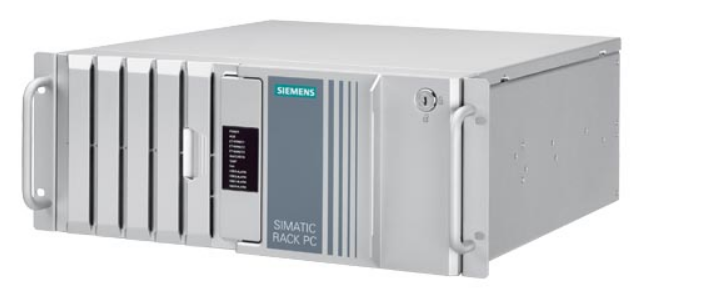

SIMATIC IPC547J_DATASHEET
